Explosion Proof High Mast Flood Lights

HAZARDOUS AREA ATEX FLOODLIGHT SYSTEM

Explosion Proof High Mast Flood Light
CeEx GrIecex GrZone 2 22 Gr130lm5yearsIk10 Ik08Ip66Temp 55cLed Gr
Gainsborough Atex Floodlight

GAI

Gainsborough 3 Series

GAI3

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureGainsborough Series Data Sheets
  • Photometric FilesGainsborough Series Photometric Files
  • Packaging & DeliveryGainsborough Series Packaging & Delivery

Key difference: recommended if asymmetric optics are required, otherwise, consider Gainsborough 2 or 3 Series

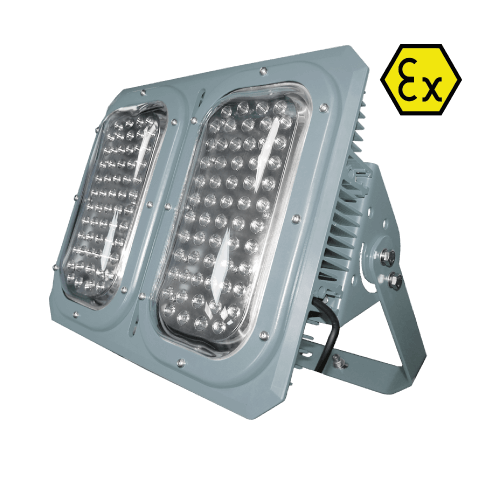

Assessed and approved by the 3rd party hazardous lighting experts Bureau Veritas and forming part of our range of LED ATEX light fittings, Kellwood's Gainsborough Series is an advanced, modular, lighting system typically deployed by lighting consultants to fulfill the role of ATEX rated high mast LED floodlights.

A wide range of optic configurations and power classes means the Gainsborough LED series can also be used as general purpose high output floodlighting and high output ATEX rated LED high bay fittings.

The team at Kellwood Lighting is here to help you find the best product for your project. You can enquire about the Gainsborough Series Mast Light via the link above the Product Summary table. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Oslon SSL
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light DistributionN/A
Asymmetric Light Distribution120/100°
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-130VAC, 220-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection6KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, M20, NPT3/4"
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Twin Eyebolts, Twin Pipe Clamp Mount, Stanchion Mount, Cable Suspension
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Explosion Proof LED High Mast Floodlighting
  • ATEX Rated - Group II, Zone 2
  • L70 ≥ 120,000 Hours
  • 1no. Asymmetric Optic
  • IP66

ATEX: Ex II 3 G D

  • Ex nR IIC T* Gc
  • Ex tc IIIC T* Dc IP66

IECEx

UL version available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureGainsborough 3 Series Data Sheets
  • Photometric FilesGainsborough 3 Series Photometrics Files
  • Packaging & DeliveryGainsborough 3 Series Packaging & Delivery

Key difference: More efficient than Gainsborough Series - available with symmetric optics only

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelLuxeon 5050
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light Distribution15°, 40°, 60°, 80°, 120°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-130VAC, 220-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection6KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Twin Eyebolts, Twin Pipe Clamp Mount, Stanchion Mount, Cable Suspension
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Explosion Proof LED High Mast Floodlighting
  • ATEX Rated - Group II, Zone 2
  • L70 ≥ 120,000 Hours
  • 6no. Task-Specific Optic Variations
  • IP66

ATEX: Ex II 3 G D

  • Ex nR IIC T* Gc
  • Ex tc IIIC T* Dc IP66

IECEx

UL version available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeGAIGAI3
Nominal Power (Range)80W to 240W80W to 240W
Luminaire Efficacy @ CRI>70 5700K CCT81 to 84 lm/W130 to 131 lm/W
Lumen Output @ CRI>70 5700K CCT6,720 to 20,160 lm10,400to 31,440 lm
Lumen Maintenance (TM21 Calculated)L80B10 ≥70,000 hoursL80B10 ≥86,468 hours
Primary ConformitiesATEX, IECEx, CEATEX, IECEx, CE
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

H1V1-15º H1V1-15º
H3V3-40º H3V3-40º

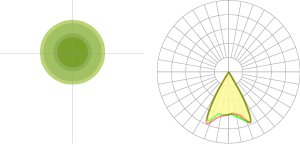

H4V4-60º H4V4-60º
H5V5-80º H5V5-80º
H6V6-120º H6V6-120º

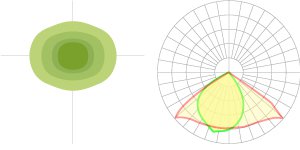

FW-120ºx100º FW-120ºx100º

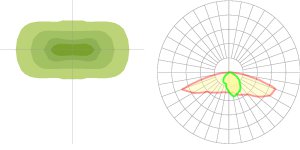

SL-90ºx150º SL-90ºx150º

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

ATEX Lights designed for

PURPOSE

Depending on your project location and ambient conditions an extended 10 year product warranty is available.

  1. Impact Resistance - Risk of early failure is significantly lowered through the use of a shock and vibration-resistant tempered glass lens and industrial copper free aluminium alloy housing. Which can withstand up to 20J of force.
  2. Lumen Performance - Within the Gainsborough it utilises high lumen output chips, 7 varied light distribution and adjustable mounting options to produce the perfect light in your working environment.
  3. Glare - The fitting is designed with recessed chips to minimise glare.
  4. Mounting - The Gainsborough series offers 4 installation methods; As standard universal mounting bracket, pole mount slip fitter, pipe clamp system, hook loop suspension system.

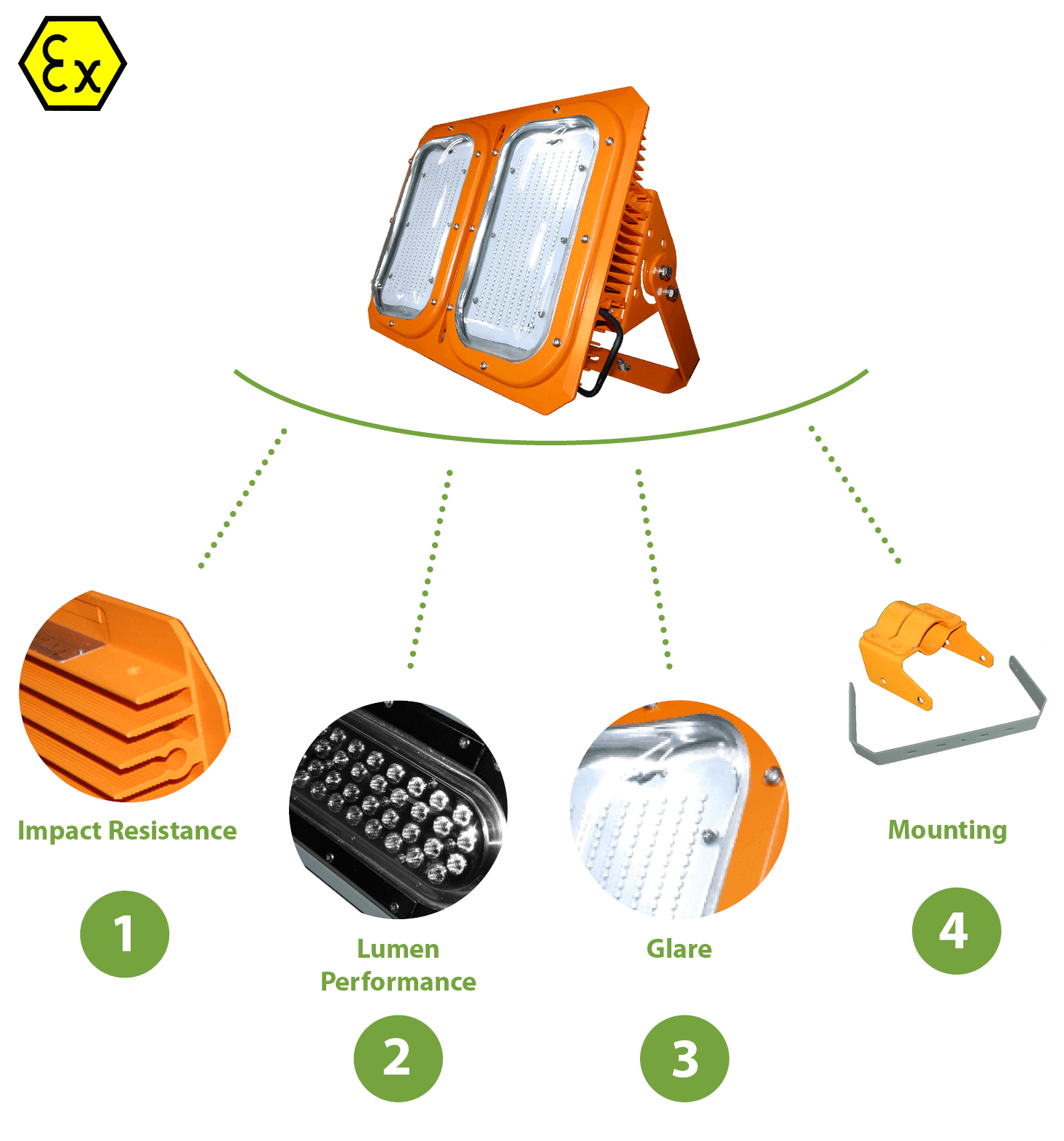

Gainsborugh Designed for Purpose Diagram

TYPICAL

APPLICATIONS
