Swimming Pool Floodlights

Swimming Pool Floodlight

McFarlane
Series

Floodlights for Commercial Swimming Pools

Advanced LED floodlights for swimming pools with emergency and wireless control options

McFarlane LED Floodlights
Ce150lm5 10yearsIk10Ip66Temp 50cWirelessDimmableLedMarine Grade

The McFarlane Series Swimming Pool Floodlight is designed to provide commercial swimming pool users with a safe, brightly lit environment.

Typically supplied with a white anti-corrosion chlorine-resistant powder-coat finish, the McFarlane Series swimming pool variant is designed to complement the clean surroundings of commercial pools.

Available in a variety of optics, and a range of light outputs up to 62,000lm, up-lighting solutions can be designed to meet Class 3, 2, and 1 requirements, even with low-reflectance ceilings.

Thermal management mitigates accelerated lumen decay, a challenge often found to hot swimming pool environments.

This Series is compatible with Kellwood's Wireless Pro wireless lighting system, and available with 3hr maintained emergency, providing further energy reduction and cost-saving measures.

Our team at Kellwood Lighting is here to help you find the most appropriate light fittings for your project. You can enquire about McFarlane Series Swimming Pool LED Floodlights using the link provided on this page. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

Performance Summary
Series CodeMCF5
Nominal Power (Range)40W to 480W
ResistanceIP66 Chlorine Resistant
Drive Current700mA / 1050mA
Luminaire Efficacy @ CRI>70 5000K CCT150lm/W (A Series), 135lm/W (B Series)
Lumen Output @ CRI>70 5000K CCT6,000 to 62,000 lumens
Lumen Maintenance (TM21 Reported)L70B10>200,000 hours, L90B10 >60,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS), DCL, UL
Warranty10 Years
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

10º Optic 10º Optic
20º Optic 20º Optic
40º Optic 40º Optic
60º Optic 60º Optic
90º Optic 90º Optic
120º Optic 120º Optic
150º Optic 150º Optic

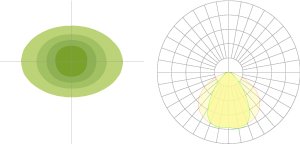

IESNA Type 1 Short IESNA Type 1 Short

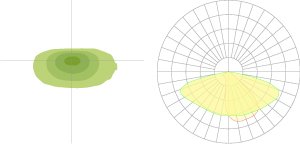

IESNA Type 2 Short IESNA Type 2 Short

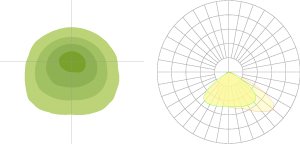

IESNA Type 3 Short IESNA Type 3 Short

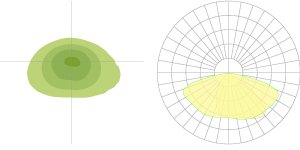

IESNA Type 3 Medium IESNA Type 3 Medium

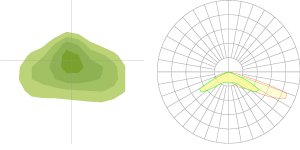

IESNA Type 4 Short IESNA Type 4 Short

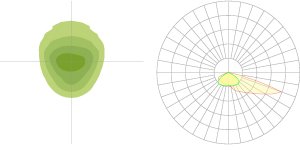

IESNA Type 4 Very Short IESNA Type 4 Very Short

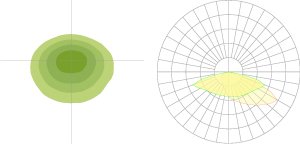

IESNA Type 4 Medium IESNA Type 4 Medium

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Floodlights designed for
PURPOSE

With an IP66 rating, robust construction and optional marine grade finish, the McFarlane Series LED Floodlights are suitable for use in harsh environments.

Premium components, surge protection and excellent thermal design ensure ultimate reliability and lifetime, whilst high efficacy and intelligent lighting control compatibility delivers the potential for excellent energy savings.

  1. Modular Design - IP66 conformance is ensured by individually pressure testing each LED module prior to assembly with the light's chassis. LED module spacing was assessed to maximise air convection through the fitting; improving thermal management and the product's lifespan.
  2. Product Finish - The light comes with the choice of Grey, Black or White colour finishes. The standard AkzoNobel polyester powder coat can be upgraded for increased salt corrosion resistance.
  3. Surge Protection - The PCB has TVS (Transient Voltage Suppressors) to protect the LED chip from voltage transients induced by lightning. Combining this with independent SPDs provides a surge protection of 20kV/10kA.
  4. Optics - 14 varied optics are available which include: 7 asymmetric, 7 symmetric, backspill guard and frosted diffuser (to reduce glare).

McFarlane Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Perimeter Lighting
  • Sports Pitches
  • Outdoor Parking
  • Flood Lighting
  • Warehouses
Matlock ARC Leisure Centre

Matlock ARC Leisure Centre

Matlock ARC Leisure Centre: providing competition and recreation level lighting. Through a bespoke control system, the light output can be adjusted by a local push switch whilst simultaneously reacting to dynamic daylight changes.

Read More about our Matlock ARC Leisure Centre work

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 219F
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70, >80, >90
Symmetric Light Distribution10°, 20°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution1S, 2S, 3S, 3M, 4VS, 4S, 4M
Lens OpacityClear, Diffused
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage120-277VAC
Driver Brand(s)Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.9
THD<20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical Connection800mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI2 D4i
Built-in ControlsPhotocell, NEMA Socket and Cap
Options/Accessories
Mounting StylesUniversal Bracket, Surface Mount Bracket, Wall Mount
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), White (RAL (9010), Customised
Miscellaneous AccessoriesBird Spikes, Safety Cable

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

DLC

UL

CUL

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
