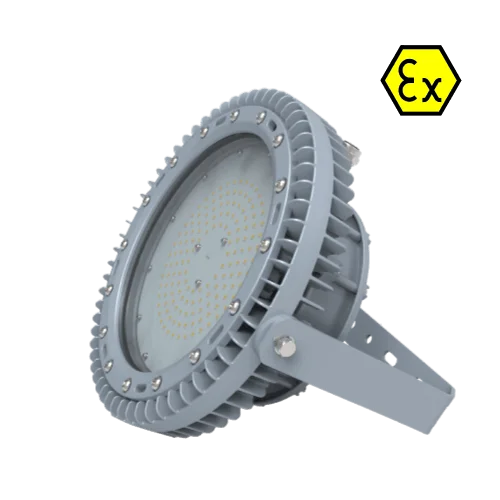

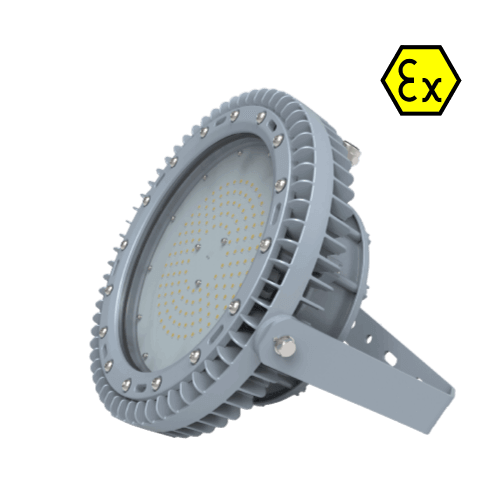

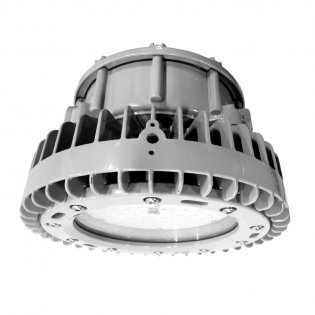

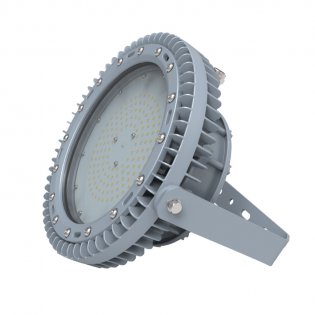

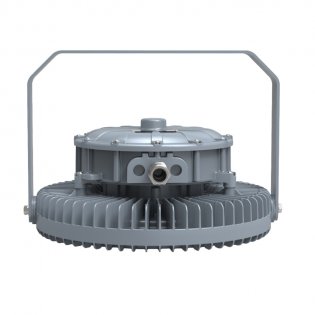

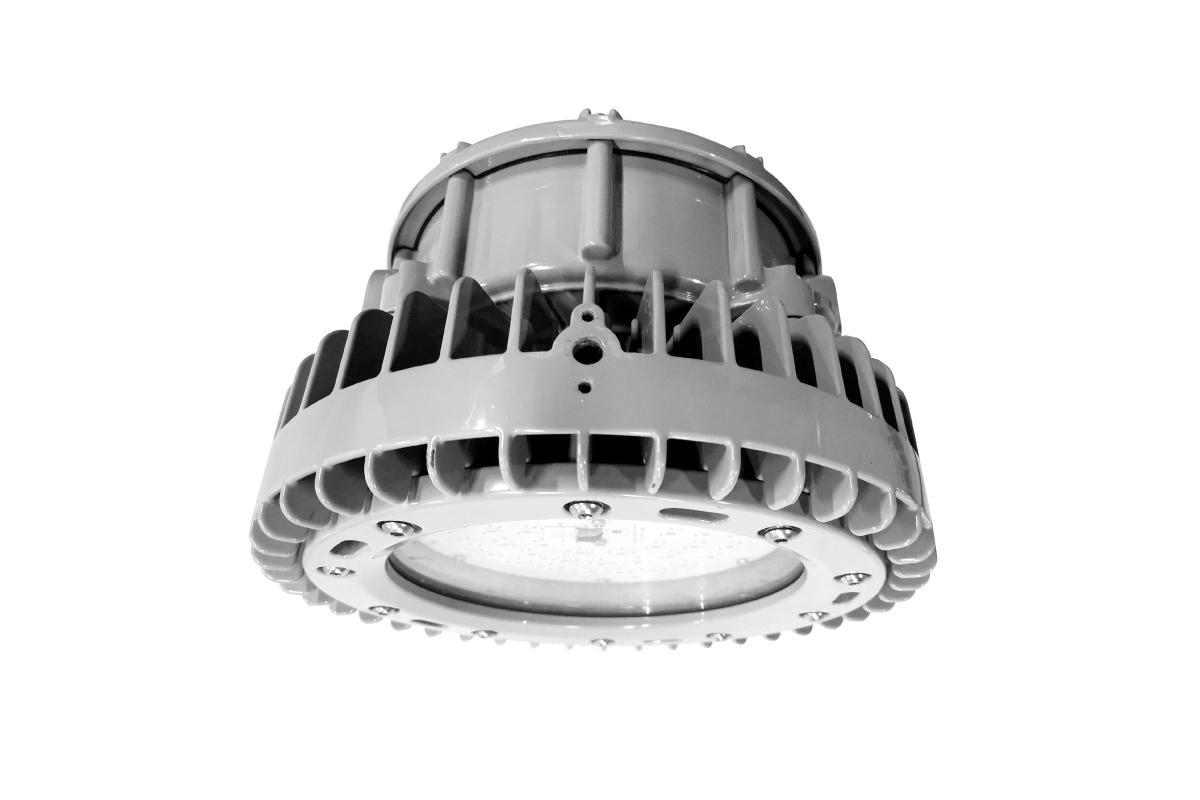

Explosion Proof bay Lights and Flood Lights

HAZARDOUS AREA EMERGENCY ATEX BAY LIGHT SYSTEM

Stanforde Profile Image
CeEx GrIecex GrZone 1 21 Gr125lm5yearsIk10Ip66Temp 55cEmergency
  • Technical BrochureStanford Series Data Sheet
  • Photometric FilesStanford Photometric Files
  • Packaging & DeliveryStanford Series Weights and Packaging Documentation

Kellwood's Stanford Series was introduced to our LED ATEX light fittings as an efficient and effective high-output lighting solution for Zone 1 and Zone 2 Explosive Atmospheres. In both Standard and Emergency Operation, the Stanford Series illuminates to a high degree, ensuing that high risk areas remain safe for personnel during regular activities or unforeseen power failures.

Available in a wide range of wattages, the Stanford Series excels in small-scale specialist applications and large-scale area lighting where high average lux levels are required - providing additional cost reduction benefits though integrated Emergency functionality.

The team at Kellwood Lighting is here to help you find the best product for your project. You can enquire about the Stanford Series Light via the link above the Product Summary table. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelLumiled Luxeon 5050
Light EmissionDirect
CCT5700K, (3000K, 4000K, 5000K optional)
CRI≥70, (≥80 optional)
Symmetric Light Distribution60°, 80°, 120°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-20° to 55°C
Electrical
Input Voltage100-277VAC, 220-240VAC (Emergency)
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, M20, NPT3/4"
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories

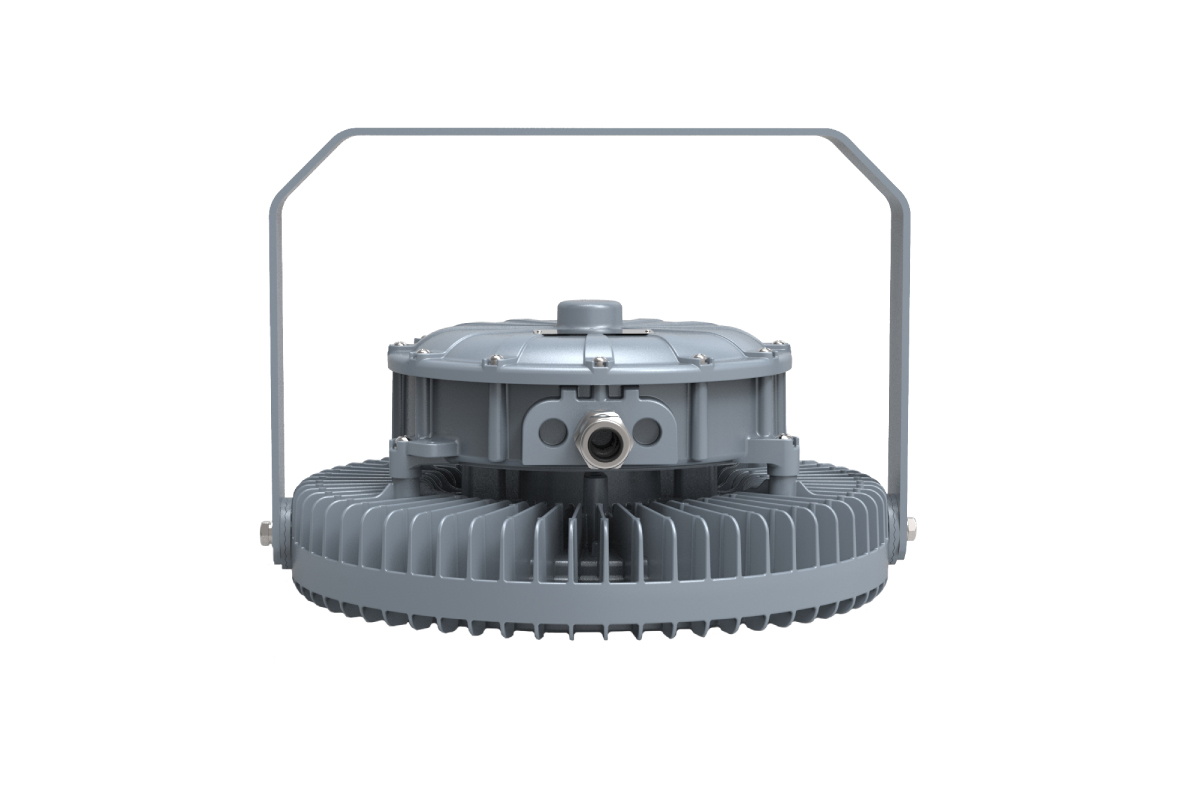

Mounting StylesTwin Surface Mount Brackets, Twin Eyebolts, Twin Pipe Clamp Mount, Stanchion Mount, Cable Suspension
Available Product ColoursGrey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Explosion Proof LED Bay Lighting
  • ATEX Rated - Group II, Zone 1
  • IP66
  • 10W Output (Emergency)
  • Flexible Wiring Options

ATEX: Ex II 2 G D

  • Ex db IIC T* Gb
  • Ex tb IIIC T* Db

IECEx

UL version available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeSTA
Nominal Power (Range)30W - 300W
Luminaire Efficacy @ CRI>70 5700K CCT118 - 128lm/W
Lumen Output @ CRI>70 5700K CCT3840 - 35,400lm
Lumen Maintenance (TM21 Calculated)L70B50 ≥50,000 hours
Primary ConformitiesCE, RoHS, ATEX
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

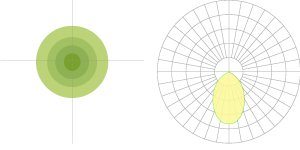

LIGHT DISTRIBUTION OPTIONS

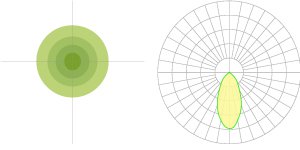

60° Optic 60° Optic
80° Optic 80° Optic

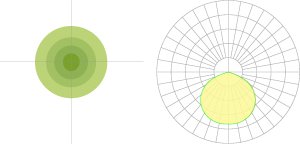

120° Optic 120° Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

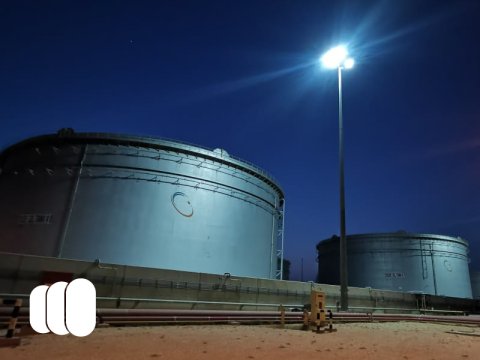

TYPICAL

APPLICATIONS

  • Petroleum Industry
  • Power Generation
  • Power Transmission
  • Machine Manufacturing
