Single-Sided LED Emergency Fire Exit Sign

WALL MOUNTING, AVAILABLE IN SWITCHABLE MAINTAINED/NON-MAINTAINED OR DALI SELF-TEST

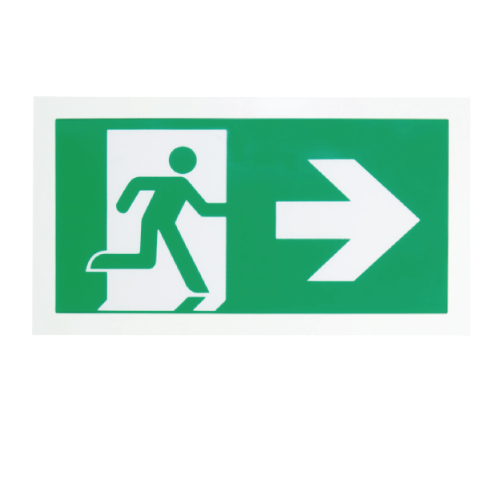

Elphinstone Single Sided Emergency Exit Sign Light
Ce3yearsEmergencyLedLifepo4

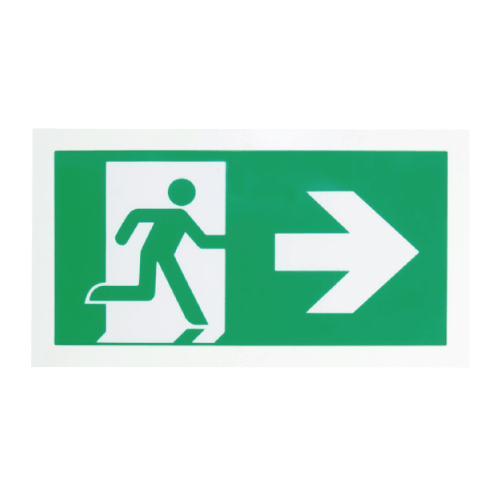

Elphinstone Single Sided Emergency Exit Sign Light

ELP

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureElphinstone Series Data Sheets
  • Packaging & DeliveryElphinstone Weights & Packaging

A functional illuminated exit bulkhead, the Elphinstone series can be surface or semi-recess mounted suitable for most wall mount applications. A choice of switching options and standard arrow directions cover the most common requirements.

Our team is here to help you find the best product for your project. You can enquire about the Elphinstone emergency exit sign via the link below. Alternatively feel free to speak to one of our lighting design consultants on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSamsung
Light EmissionDirect
Lens OpacityN/A - Emergency Legend Plate
Environmental
Ingress RatingIP40
Electrical
Input Voltage230-240VAC
Input Frequency (VAC)50-60Hz
Deep Discharge Protection (DDP)Yes
Recharge Period12 Hours
Battery Current Limit700mA, 350mA
Charge Current0-400mA Float, 0-150mA Float
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialPolycarbonate, Plexi Glass
Options/Accessories
Mounting StylesSurface Mount
  • 2W / 3W
  • Surface Mount (Wall)
  • White Polycarbonate Body
  • Extra Long Life LiFePO4 cells
  • Ingress Protection Rating - IP40 rated
  • 30m Viewing Distance
  • ISO Legends as Standard
  • DDP (Deep Discharge Protection)
  • Samsung LEDs

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeELP
Duration3 Hours
Test-TypeRemote-Test, DALI Self-Test
OperationMaintained or Non-Maintained
Power2W or 3W
Battery6.4V 3.0Ah LiFePO4 Cells (2W) or 9.6V 1.5Ah LiFePO4 Cells (3W)
Warranty4 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

Emergency light designed for

PURPOSE

With a 30m viewing distance and extra- long life Lithium Iron Phosphate (LiFePO4) battery technology, the Elphinstone series offer a practical and durable solution to escape route signage which can help reduce costly battery maintenance costs.

Elphinstone Single Sided Emergency Exit

TYPICAL

APPLICATIONS

  • Offices
  • Schools
  • Hotels
  • Retail
