IK10++ (150J) anti-ligature, anti-tamper housings with enhanced anti-shock features for use in prisons, and secure facilities

• Technical Brochure
• Photometric Files

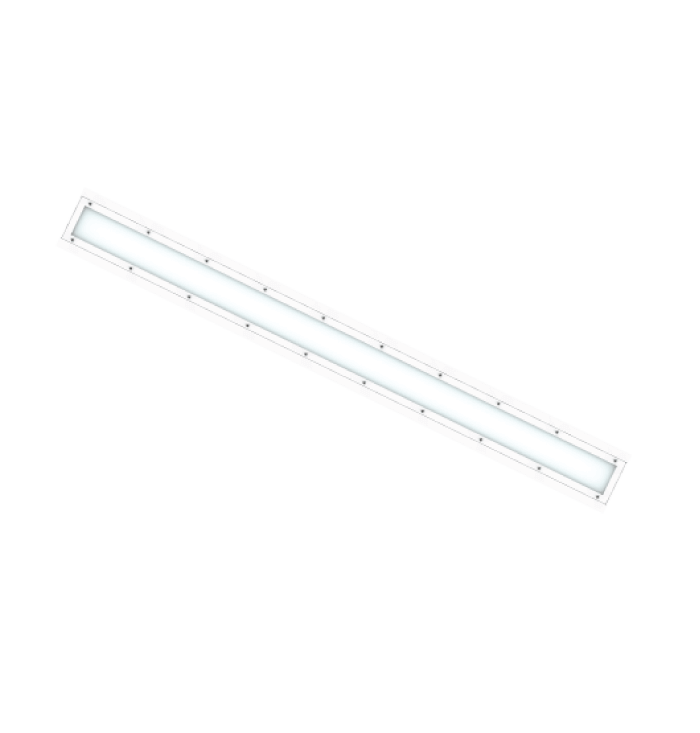

The Vanguard Series Custodial Light is designed to provide safe, bright, uniform light for secure facilities. Its robust IK10++, fully welded anti-ligature housing includes anti-tamper features and an optional anti-shock device.

The recessed rear cable entry provides secure and inaccessible wiring connections that ensure the fitting remains flush with surfaces, mitigating vandalism.

Its water-resistant IP65 housing makes it suitable for both general-circulation spaces, and secure wash room facilities.

Additionally, its versatile housing profiles allow for both corner and ceiling mounting, offering flexibility in installation to suit various space configurations.

The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Vanguard Series Linear Custodial Lights via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

• Anti-ligature housings: the triangular and low-profile rectangular (78mm deep) housings provide anti-ligature protection, and are suitable for corner, ceiling, and wall-mount applications.
• (Optional) Anti-Shock Device: in the unlikely event of unauthorised access, an (optional) internal anti-shock device can be included to protect residents and staff.
• IK10++ (150J) Shock Resistant Housing: the thick, 5mm polycarbonate diffuser and steel housing (with fully-welded seams) mitigates damage from vandalism.
• Anti-Tamper Security Screws: the diffuser is secured by anti-tamper security screws, lessening risk of unauthorised access to the internal components and main mounting points.
• Secure Mounting Points: internal mounting points are suitable for heavy-duty expansion bolt fixings, minimising the chance that the fitting can be dislodged from the wall or ceiling with force.
• A Range of Lumen and CCT Outputs, and Fitting Sizes: 2ft, 4ft, and 5ft housings, and 3000K and 4000K outputs up to 5,700 lumens, ensure that a solution can be optimised to safely light a cell, circulation area, or wash room, with appropriate illuminance and excellent uniformity.
• Recessed Rear Cable Entry: ensures the fitting remains flush with the ceiling or walls, mitigating gaps, that can lead to to vandalism.
• Water-Resistant White Finish: suitable for general purpose, and wet areas.
• Emergency: integrated 3hr emergency versions provide safe lighting in the event of power supply failure.

CE

• LVD (Directive 2014/35/EU)
• EMC (Directive 2014/30/EU)
• RoHS (Directive 2011/65/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
