Drummond Emergency Module Banner Image

eMERGENCY

Drummond 3

Emergency sERIES

DEDICATED EMERGENCY LINEAR LIGHT SUITABLE FOR AISLE AND RACKING AREAS

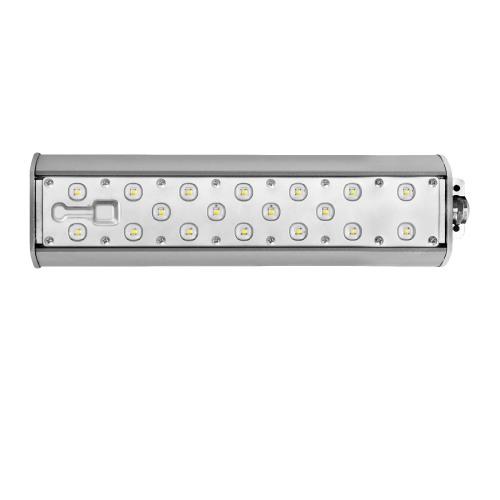

Drummond Emergency Module Profile Image
Ce125lm5yearsIk08Ip67EmergencyMarine Grade
Drummond 3 Emergency

DRU3EM

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureDrummond 3 Emergency Series Data Sheet
  • Packaging & DeliveryDrummond 3 Emergency Series Weights & Packaging

The Drummond 3 Series dedicated emergency is a robust linear light suitable for use within industrial and commercial applications. Lithium Iron Phosphate Batteries provide long term reliability and with IP67 rating it protects from harmful dusts and moisture. Flexible array of mounting solutions to provide easy installation in multiple environments.

Our team at Kellwood Lighting is here to help you find the best light fitting for your project. You can enquire about the Drummond Emergency Series via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT5000K
CRI>70
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light DistributionIESNA Type 1M, 2M, 3M, 3L, 4S, 4M
Lens OpacityClear, Frosted
Environmental
Ingress RatingIP67
Impact ResistanceIK08
Ambient Usage Tolerance10% to 90% RH
Electrical
Input Voltage100-277VAC
Input Frequency (VAC)50-60 Hz
Recharge Period24 Hours
Battery Current Limit2500mAh
Physical/Mechanical
Electrical Connection800mm cable
Fixture Primary MaterialsAluminium Alloy and Stainless Steel Fasteners
Fixture FinishPowder Coated
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Cable Suspension
Miscellaneous AccessoriesAkzoNobel Polyester Powder Coat Finish
  • Emergency - The battery meets the standards of CH and DCH to provided a minimum of 300 recharge cycles.
  • Chip: Nichia 3535 is used within the light fittings and provides up to 516 lumens.
  • Ingress Protection: The Drummond 3 Emergency Series provides a ingress protection of IP67.
  • >13 Optics: includes a wide array of symmetric and asymmetric distribution optics. IESNA type optics designed for aisle and racking areas.
  • Installation: twin surface mount brackets and cable suspension available.
  • AkzoNoble Surface Finish: upgrade to a marine grade finish for further corrosive environments protection.

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

UL

DLC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeDRU3EM
Duration3 Hours
OperationNon-Maintained
Power4W
Battery CompositionLi-ion
OpticsIESNA Type 1M, 2M, 3M, 3L, 4S, 4M, 10°, 25°, 40°, 60°, 90°, 120°, 150°,
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

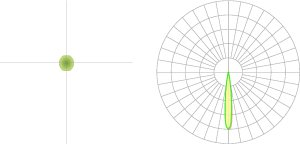

10° Optic 10° Optic

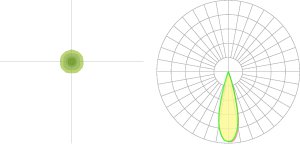

25° Optic 25° Optic

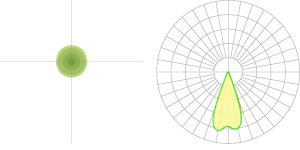

40° Optic 40° Optic
60º Optic 60º Optic

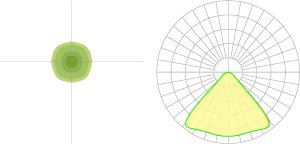

90° Optic 90° Optic

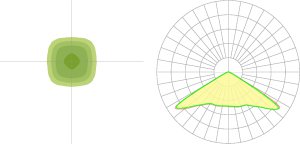

120° Optic 120° Optic

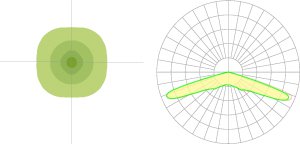

150° Optic 150° Optic

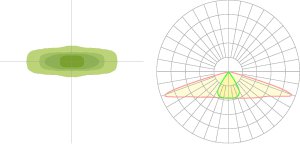

IESNA Type 1 Medium IESNA Type 1 Medium

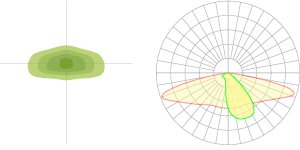

IESNA Type 2 Medium IESNA Type 2 Medium

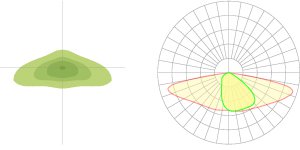

IESNA Type 3 Long IESNA Type 3 Long

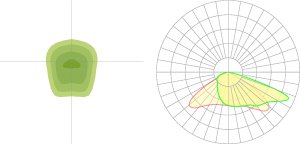

IESNA Type 4 Short IESNA Type 4 Short

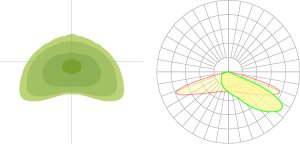

IESNA Type 4 Medium IESNA Type 4 Medium

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear Emergency

lights designed for

PURPOSE

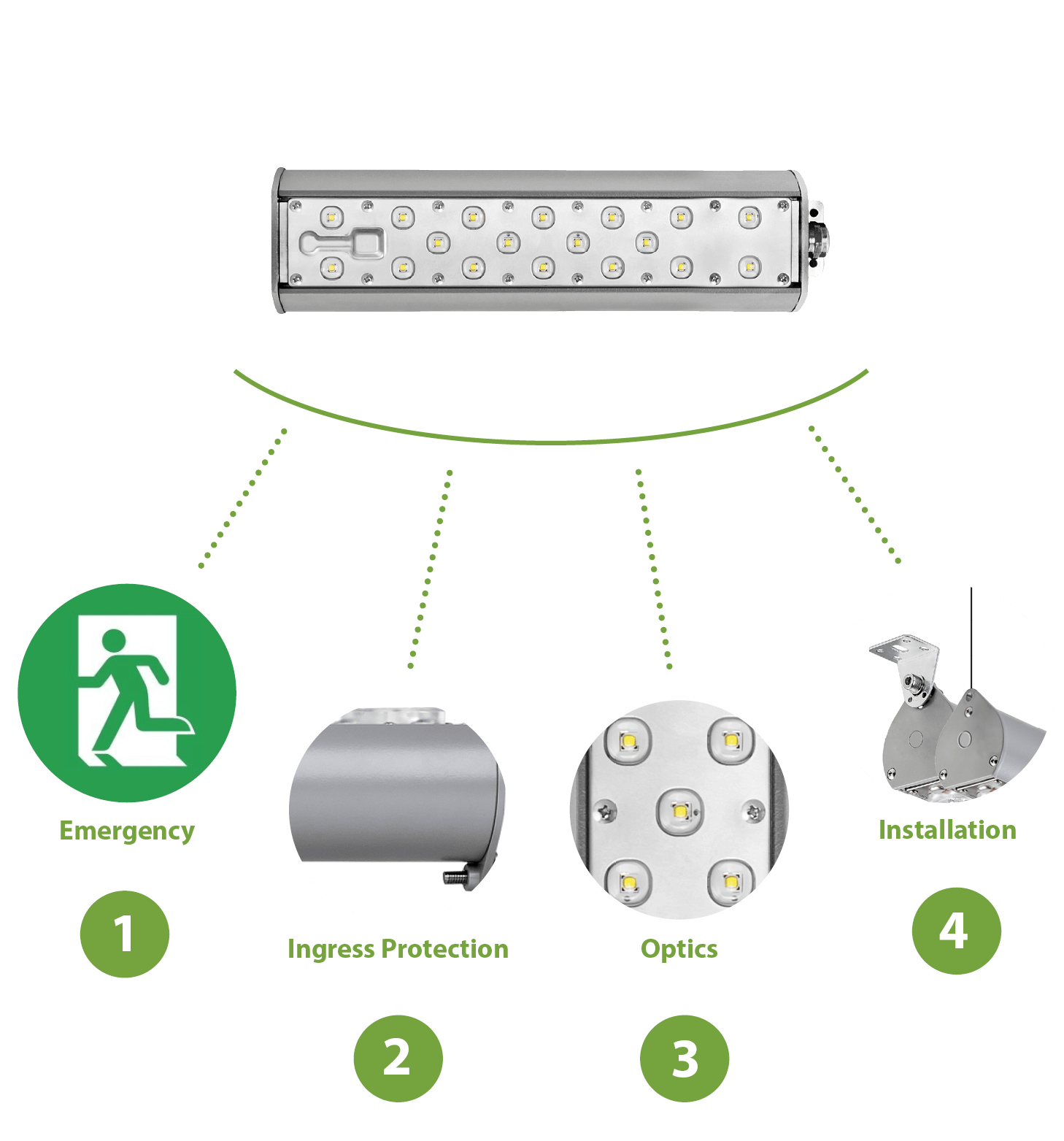

  1. Emergency: The Drummond 3 Emergency Series uses a battery composition of Li-ion with a capacity of 2,500mAH, this provides 3 hour output power duration.
  2. Ingress Protection: IP67 comes as standard, further protection can be added by using AzkoNobel polyester powder coating for increased salt corrosion resistance.
  3. Optics: >13 optic variation available in symmetric and asymmetric options.
  4. Installation: two installations methods are available, which include twin surface mount brackets and cable suspension.
Drummond 3 Emergency Series Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Production
  • Storage
  • Workshops
  • Indoor Sports Facilities
  • Warehouses
