Drummond Premium Linear Lighting

Industrial Linear

Drummond
Series

Premium Linear LED Lighting

High lumen maintenance (long lifetime) linear LED luminaire with versatile and precision optic variations

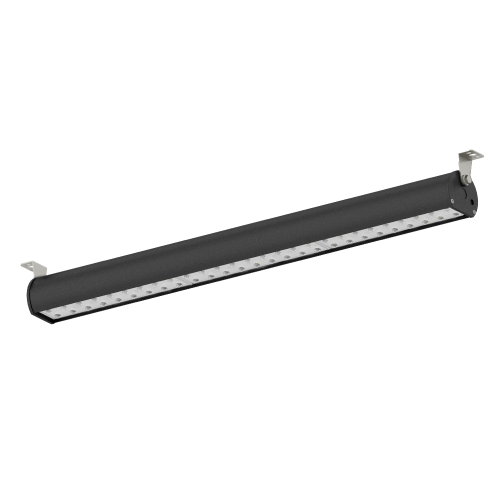

Drummond Linear LED Lighting
Ce150lm5 10yearsIk10Ip66Temp 50cDimmableEmergencyMarine Grade

Available up to 155W (24,000lm), the Drummond Series is a capable and flexible range of high output linear LED lighting, suitable for use in a wide range of industrial, commercial and sporting applications. High ingress and impact protection combined with premium components ensure that the Drummond Series of linear fittings provide excellent and long-lasting performance.

Precision optics and optional 3hr emergency make it ideal for lighting facilities with limited or awkward mounting positions.

Our team at Kellwood Lighting is here to help you find the best light fitting for your project. You can enquire about the Drummond Series via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeDRU5
Nominal Power (Range)40W to 155W
Luminaire Efficacy @ CRI>70 5000K CCT150 lm/W
Lumen Output @ CRI>70 5000K CCT6,000 to 24,000 lumens
Lumen Maintenance (TM21 Reported)L70B10>200,000 hours, L90B10 >60,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS)
Warranty10 Years
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

10º Optic 10º Optic
20º Optic 20º Optic
40º Optic 40º Optic
60º Optic 60º Optic
90º Optic 90º Optic
120º Optic 120º Optic
150º Optic 150º Optic
IESNA Type 1 Short IESNA Type 1 Short
IESNA Type 4 Short IESNA Type 4 Short

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear lights designed for
PURPOSE

A variety of lumen outputs and beam angles optimise the ability to direct the right amount of light where it is needed, while options for integrated emergency modifications, linkable design and dimmable drivers further enhance the series' advantages. Available in surface mount or suspended options, and optional colour choices, the Drummond Series are amongst the most capable LED linear lights on the market.

  1. Lumen Maintenance - Combining a thermal management through rugged aluminium chassis and Nichia chips lumen degradation is minimised. The Drummond Series has a;
    Calculated lumen maintenance of L70B10 > 100,000 hours
  2. Marine Grade Finish - The Drummond Series' standard corrosion-resistant finish can be upgraded to a AkzoNobel double-layer polyester powder coat option for increased salt corrosion resistance.
  3. In-Series Wiring - This product can be supplied with link glands with 3m/custom connection cables up to a maximum of 12 number of light fitting/daisy-chained.
  4. Optics - 8 optic variations with forward throw and frosted diffuser. Additionally it offers a <19UGR for delivering CIBSE standard commercial and sporting solution.
  5. 3 Hour Emergency - combining optional maintained or non-maintained 3hr emergency (remote test) and precision optics allows for effective emergency lighting in environments where mounting locations are limited.
  6. Optional Fitting Colours: Grey RAL:7004, Black RAL:9011, Bronze RAL:8014, White RAL:9010, Custom availability subject to MOQ.
  7. Mounting Options: twin surface mount brackets or cable suspension.

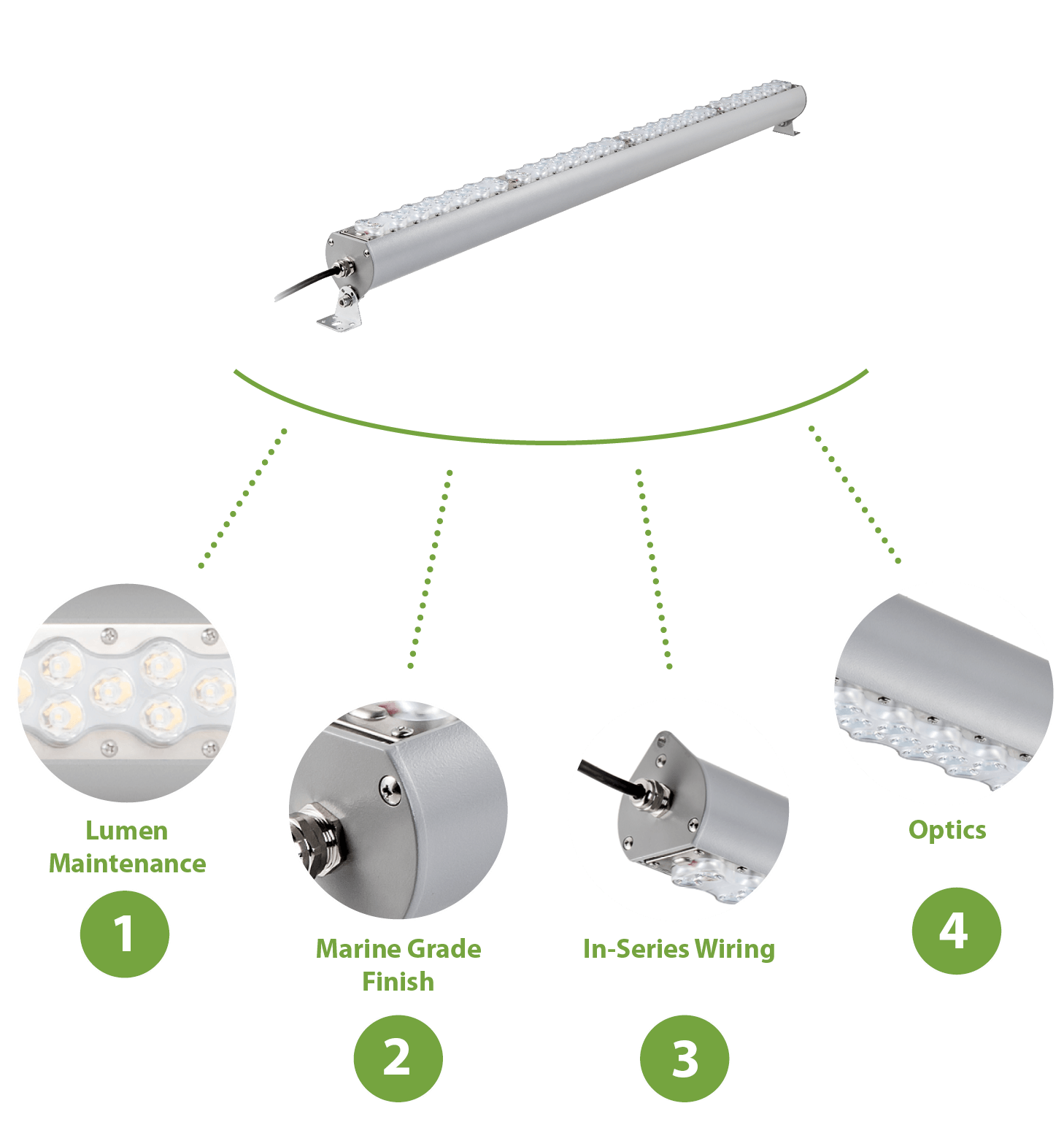

Drummond Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Production
  • Storage
  • Workshops
  • Indoor Sports Facilities
  • Warehouses
Bisham Abbey

Bisham Abbey

Kellwood Lighting were tasked with upgrading Bisham Abbey’s Indoor Tennis Courts. Bisham Abbey is a national sports centre with world class facilities catering for the country’s leading athletes.

Read More about our Bisham Abbey work

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 219F
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70, >80, >90
Symmetric Light Distribution10°, 20°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution1S, 2S, 3S, 3M, 4VS, 4S, 4M
Lens OpacityClear, Diffused
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage120-277VAC
Driver Brand(s)Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.9
THD<20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical Connection800mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI2 D4i
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSurface Mount Bracket, Cable Suspension
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), White (RAL (9010), Customised

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
