Special variant corner and ceiling mount housings for non-ATEX spray booths

• Technical Brochure
• Photometric Files

Spray booths require high lux levels and excellent lighting uniformity to help identify defects and optimise the quality of paint finish. Spray booth lighting (both the housings and the light itself) should be discrete, to mitigate unwanted reflectance in vehicle surface, yet provide contrast where necessary.

The Vanguard Series has been developed to provide a application-specific solution for non-ATEX spray booths. Suitable for hybrid spray-and-oven booths, and use during low-points in the heating cycle, fitting shapes and lengths, fitting colours, cable entries, and light distribution options provide the lighting solution required.

The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Vanguard Series Linear Spray Booth Lights via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

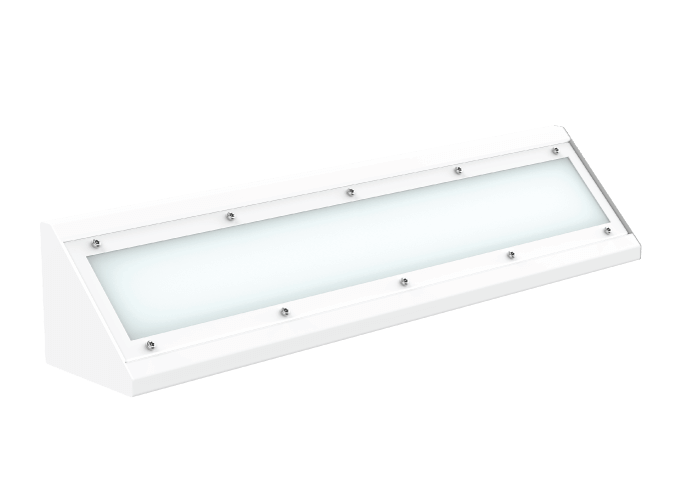

• Corner and Ceiling Mount: the corner-mount housings and low-profile rectangular ceiling-mount housings ensure the fittings can deliver remains clear of the working area.
• White Finish: minimises unwanted dark housing reflections on the vehicle body during spraying and inspection.
• Linear Form: creates reflective light "bars" which can help identify panel indentation during quality inspection.
• Rear or Side Cable Entries: installation can be optimised for internal or external cabling.
• Remote Driver and Emergency: drivers can be supplied for installation outside the spray-booth, optimising product lifetime.

CE

• LVD (Directive 2014/35/EU)
• EMC (Directive 2014/30/EU)
• RoHS (Directive 2011/65/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
