Whitelaw IP65 Downlights

IP65 LED Downlight

Whitelaw
Series

IP65 Swimming Pool Downlights

A Stylish downlight with waterproof housing and driver, and recessed reduced-glare diffuser

Whitelaw IP65 Downlights
Ce3yearsIp65Temp 40cLed

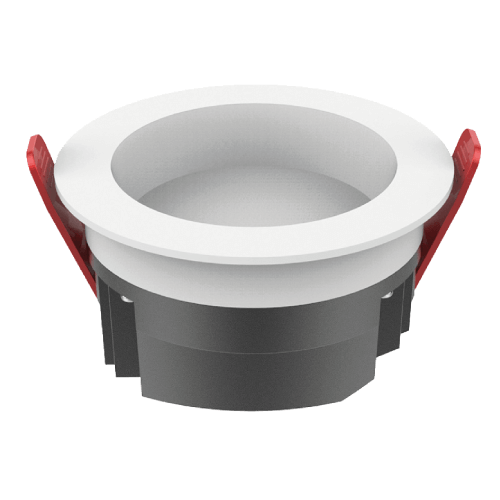

The Whitelaw Series LED downlight is designed for commercial applications requiring robust, attractive, recessed lighting. IP65 ingress protection ensures that moisture-rich environments and areas subject to routine wash downs do not compromise product performance and longevity.

Typical applications include lighting for swimming pools, changing rooms, healthcare, and wash facilities.

A range of outputs (10-50W), sizes, and 3hr emergency options, make it well suited for delicate accent lighting and functional general lighting.

Where stylistic designs are appreciated, personalised accent halos can be offered to compliment internal and external architecture.

We are here to help you find the best LED Light Fitting for your project. You can enquire about this specific product via the on-page link Alternatively feel free to speak to a member of the Kellwood Lighting team on +44 (0)1387 255816.

Performance Summary
Series CodeWHI
Nominal Power (Range)10W to 50W
Cut-out Size90-95mm (D), 125-135mm (A), 160-175mm (B), 200-215mm (C)
Luminaire Efficacy @ CRI>80 4000K CCT71-88 lm/W
Lumen Output @ CRI>80 4000K CCT710 to 4,250 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty3 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

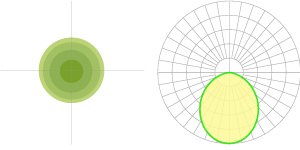

90º Optic 90º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Downlights designed for PURPOSE

The Whitelaw Series LED downlight is assembled with premium components, designed to provide a robust, attractive fitting. A recessed light engine ensures accurate light focus while simultaneously reducing glare.

  1. Chip & CRI - The Whitelaw series utilises Samsung S4 LED chip in a recessed housing to produce optimal lighting and low glare performance. It offers the choice of colour rendering index of a high ≥80 or ≥90 which reproduces colours clearer compared to more common lower CRI.
  2. Chlorine Resistant Surface Finish and Ingress Protection - Waterproof IP65 power supply and IP65 chlorine resistant surface finish luminaire. With a protective gland to allow secure cable connecting to light fixture.
  3. Heat Sink - Upgraded patented design heat sink system improves upon traditional designs. It uses aluminium die casting materials for superior heat dissipation performance and avoids potential risk in working environments.
  4. Mounting - A key feature in the design of this product is installation, it uses a 2 point brace design, making it quick and simple install process while limiting damage.
  5. 10W - 50W Models (Cut Out Sizes Vary) - a wide range of lumen outputs offers suitability for general lighting, and accent lighting.
  6. 3 Hour Emergency Options - 3hr Remote-test and DALI Self-Test options offer flexibility for general and emergency lighting.
  7. Optional Custom-Colour Faceplate - front face-plate can be custom-coloured to suit project requirements.

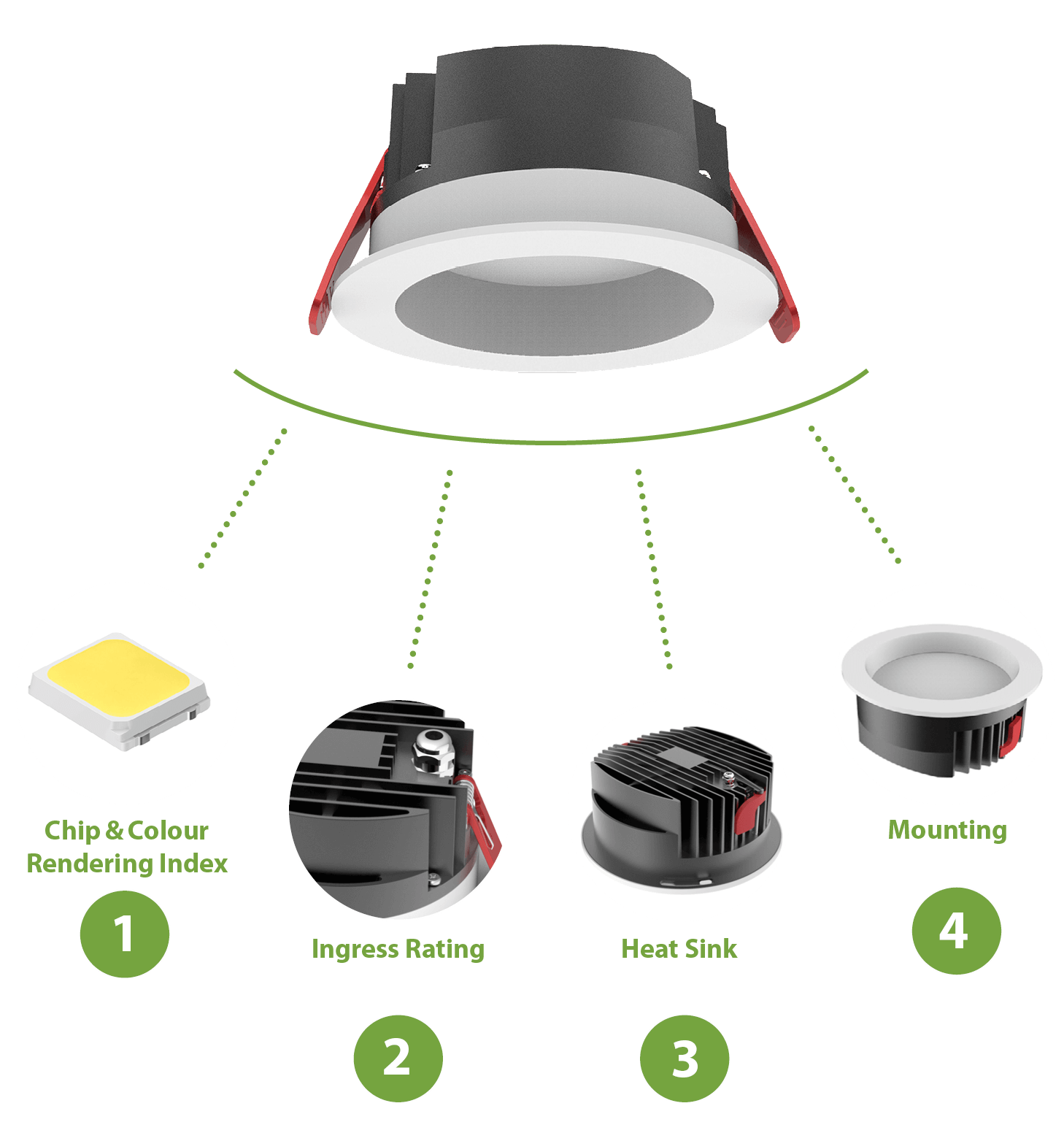

Whitelaw Design for Purpose Diagram

TYPICAL

APPLICATIONS

  • Swimming Pools
  • Clean Rooms
  • Food Production
  • Hospitals AND hEALTHCARE
  • sPAS
  • wASH ROOMS
Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSamsung 2835 SMD
Light EmissionDirect
CCT3000K, 4000K, 6500K
CRI≥80, ≥90
Lens OpacityFrosted
UGR<21
Environmental
Ingress RatingIP65
Impact ResistanceIK05
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-30° to 60°C
Electrical
Input Voltage100-240VAC
Driver Brand(s)Hongke
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<20%
Physical/Mechanical
Electrical Connection150mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPainted
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming OptionsN/A
Options/Accessories
Mounting StylesRecessed
Available Product ColoursWhite, Black, Silver
Miscellaneous AccessoriesN/A
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W
HousingExternal pack or kit (IP20 or IP65 - see data sheet)
Battery TypeNiCd or LiFePO4
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
