LED FLOODLIGHT

Franklin Series

MULTI-PURPOSE ECONOMIC Floodlight

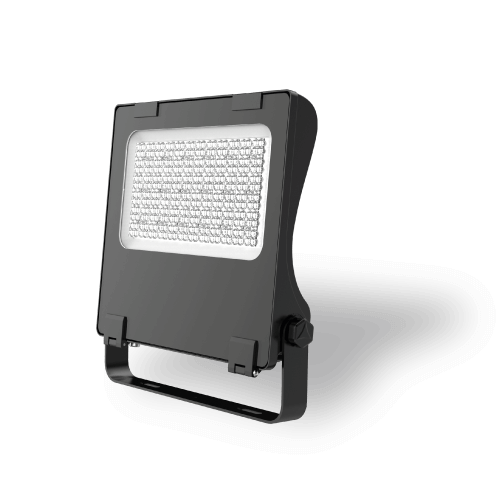

Franklin Series Product Shot
Ce135lm5yearsIk08Ip66Temp 45c
Franklin Series Product Icon

FRA

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureFranklin Series Data Sheet
  • Photometric FilesFranklin Series LED Floodlight Photometric Files
  • Packaging & DeliveryFranklin Series Weights & Packaging

Filling the role of cost-effective, lower-power area LED floodlighting, the IP66 Franklin series form part of a range of Industrial LED lights and are excellent value LED replacements for any outdated traditional floodlight running at up to and around 240W. Minimalist architectural styling meeting industrial build standards.

Kellwood Lighting is committed here to help you find the best product for your project. You can enquire about this IP65 LED Floodlights via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelOsram Duris S5
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution15°, 30°, 60°
Asymmetric Light Distribution30x60°, 65°x120°, 65°x120° (Forward Throw)
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK08
Ambient Usage Tolerance-30° to 45°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-30° to 45°C
Electrical
Input Voltage100-277VAC, 100-240VAC
Driver Brand(s)Sosen
Input Frequency (VAC)50-60Hz
Power Factor≥0.92
THD≤20% (100-277VAC)
Physical/Mechanical
Electrical Connection1500mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass, Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsN/A
Options/Accessories
Mounting StylesUniversal Bracket
Available Product ColoursBlack, Grey
Miscellaneous AccessoriesPole Mount, Clamp Mount
  • 135lm/W Nominal Family Efficacy
  • IK08 Rated
  • IP66 Anti-Corrosion
  • 6.No Optical Lens Variations

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeFRA
Nominal Power (Range)60W to 240W
Luminaire Efficacy @ CRI>70 5000K CCT135 lm/W
Lumen Output @ CRI>70 5000K CCT14,500 to 34,320 lumens
Lumen Maintenance @ 30°C (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP), ENEC, ETL, SAA
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

15º Optic 15º Optic

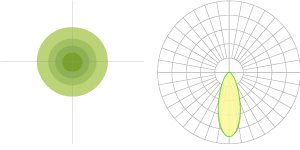

30º Optic 30º Optic

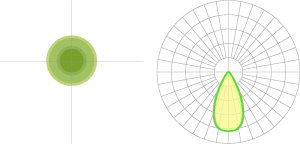

60º Optic 60º Optic

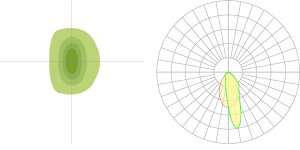

30x60º Optic 30x60º Optic

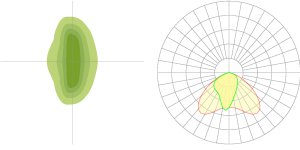

65x120º Optic 65x120º Optic

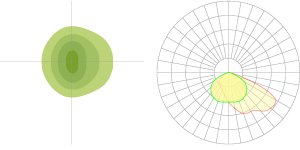

65x120º Forward Throw Optic 65x120º Forward Throw Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Floodlight designed for

PURPOSE

  1. Chip: Osram Duris S5 produces a minimum of 135lm/W (@ CRI>70, 5000K CCT) for all wattages from 60 to 240W.
  2. Optics: The Franklin series has a flexible range of optics to provide lighting for a wide range of applications: 15°, 30°, 60°, F5 (30° x 60° Floodlight), F6 (65° x 120° Floodlight), F7 (65° x 120° Forward Throw Floodlight).
  3. Protection: Through premium components of aluminium alloy housing and tempered glass provides an impact resistance of IK08. Anti-corrosion resistant powder coating is applied to the Franklin Series, providing further protection and a ingress rating of IP66.
  4. Mounting: As standard the Franklin series comes with a universal bracket that allows flexible rotation for the light fitting. Additional clamp mount is available to provide simple installation of two Franklin floodlights to a pole with the use of recessed pole mount adapter.

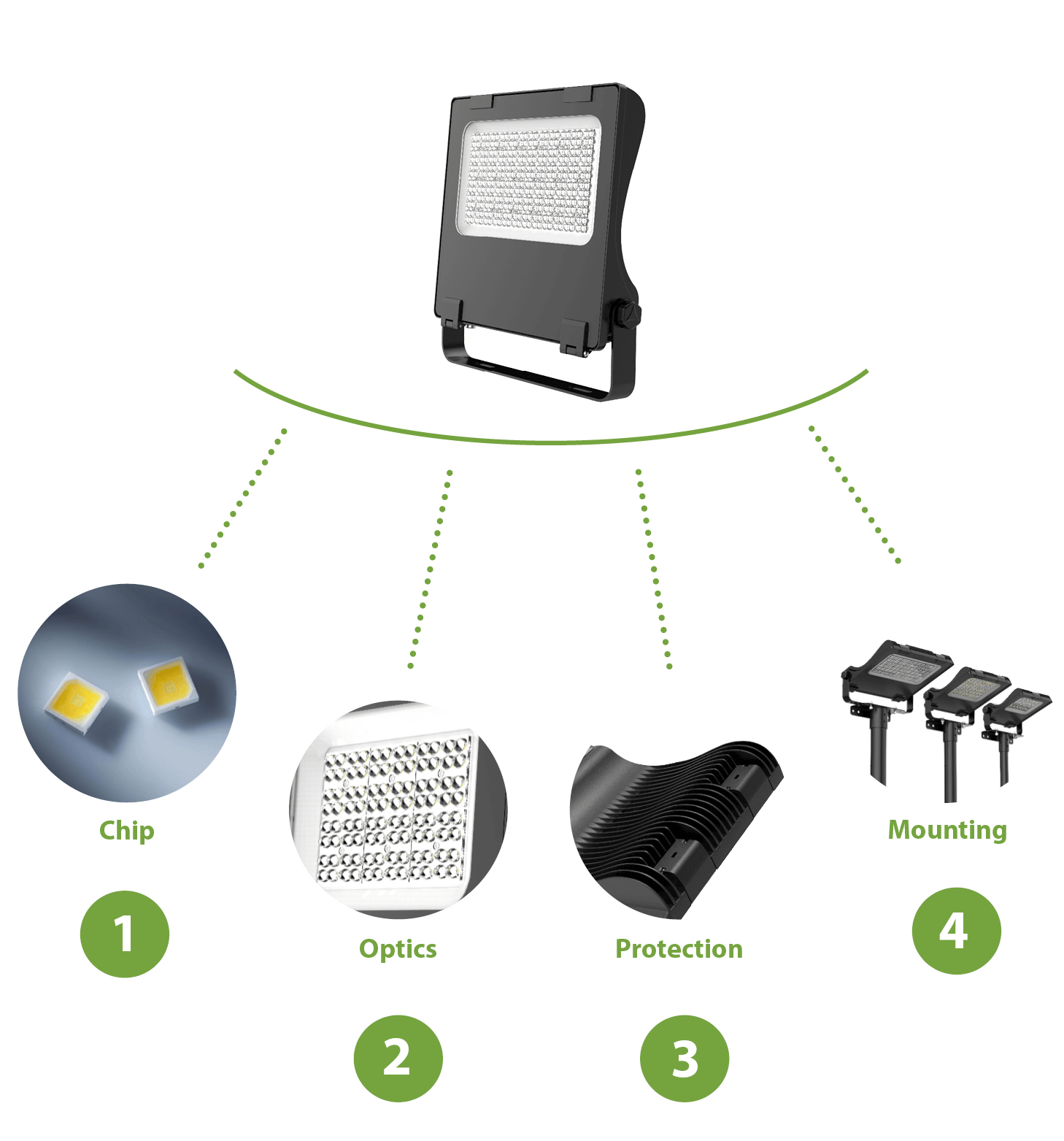

Franklin Series LED Floodlight Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Perimeter Lighting
  • Sports Pitches
  • Outdoor Parking
  • Flood Lighting
  • Warehouses
