Legacy Product - Armitage Series

This product is no longer part of our core range. We may still hold some stock, or be able to manufacture it as a "special", but you might want to consider the alternatives below:

Alternatively, please contact us on:

lightingsales@kellwood.co.uk

+44 (0)1387255816

Canopy Lights

canopy light

ARMITAGE

SERIES

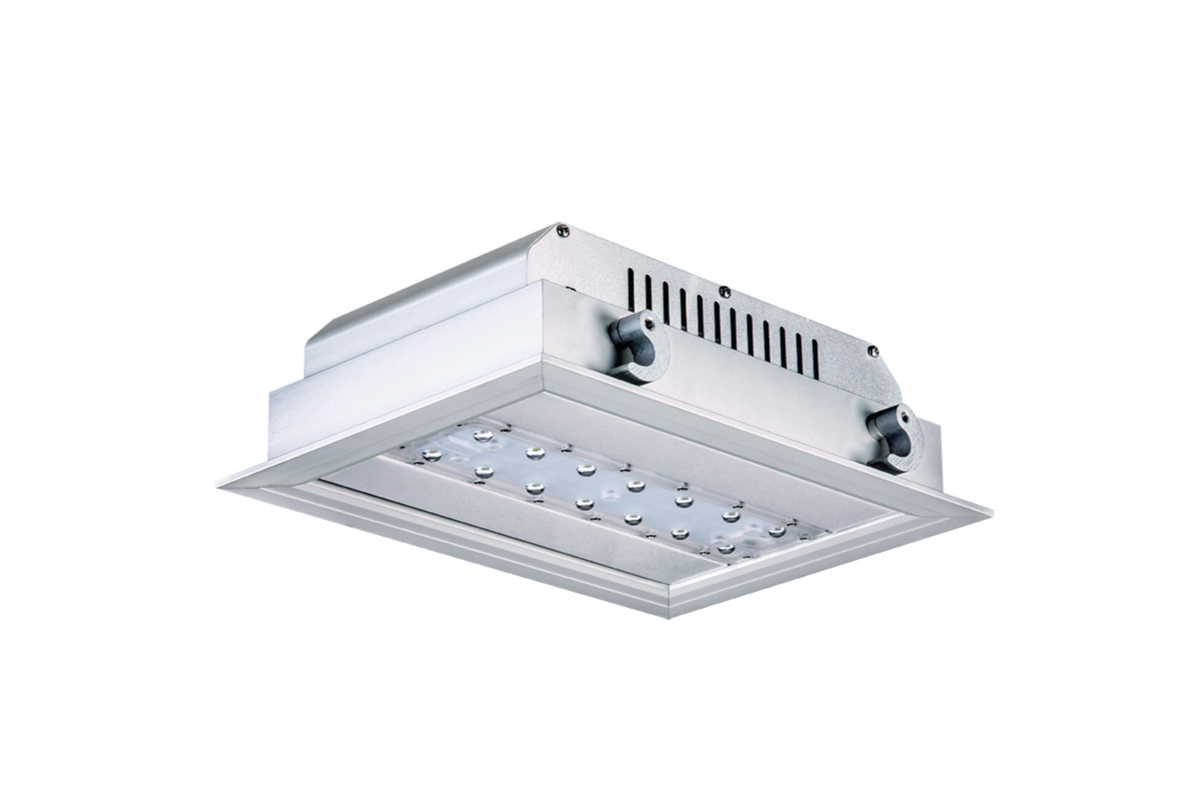

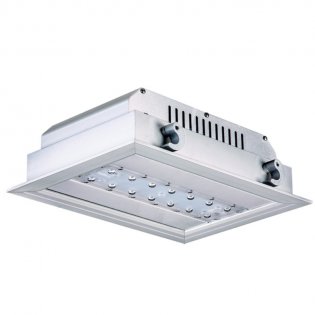

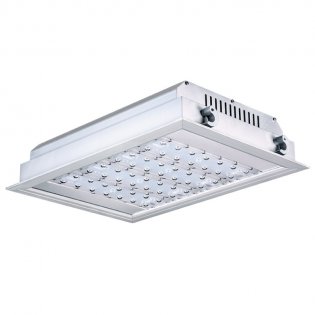

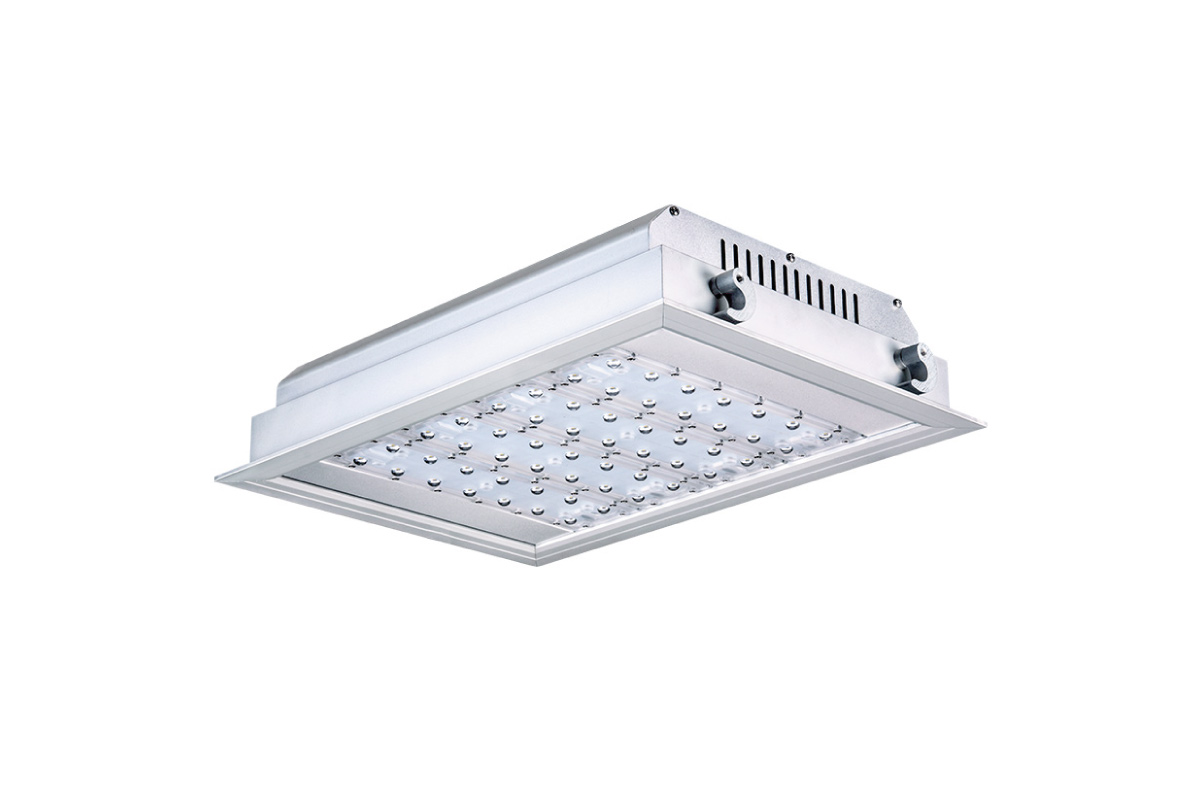

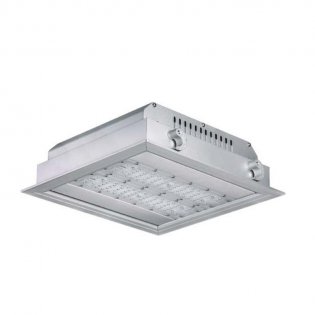

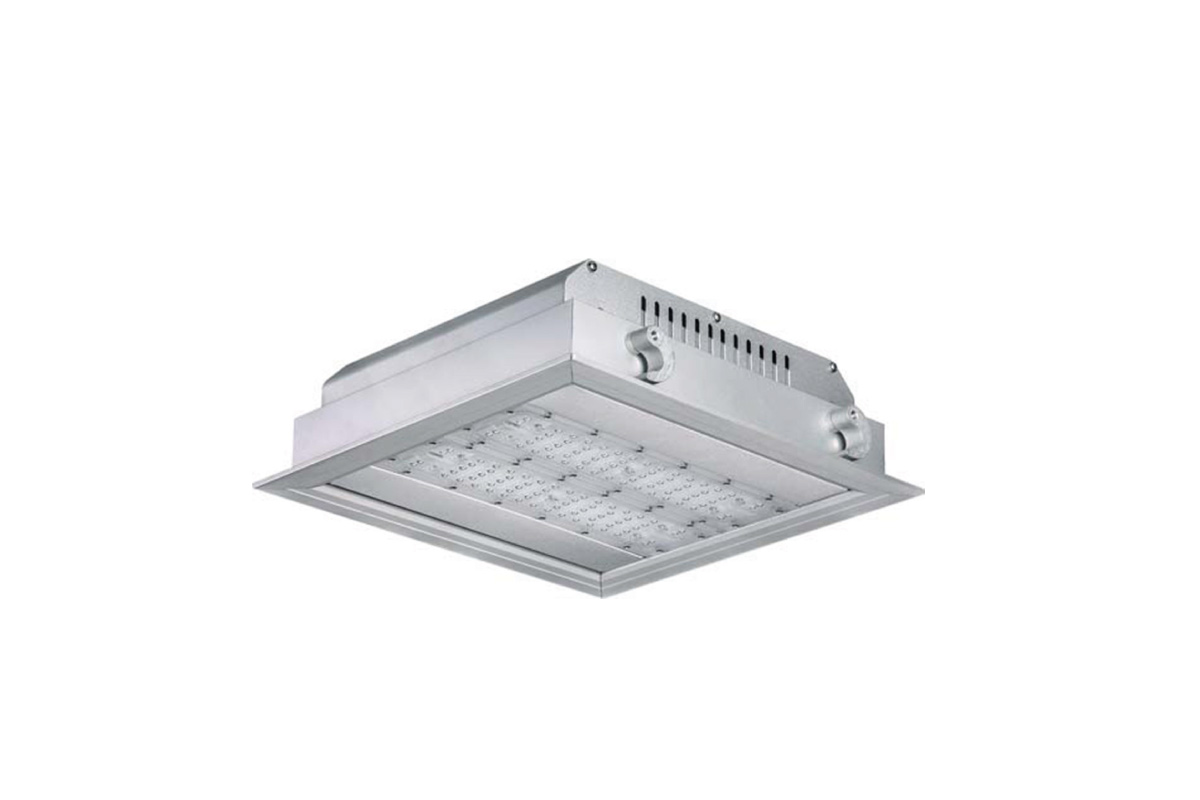

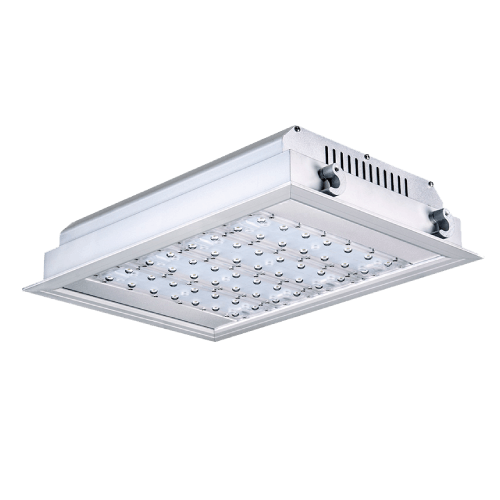

LED Canopy Lights

PREMIUM CANOPY LIGHTS WITH INSTALL FRIENDLY CHASSIS FOR APPLICATION IN PETROL STATIONS AND TRANSPORT HUBS

Armitage Canopy Lights
Ce125lm5yearsIk10Ip66Temp 50cLed
  • Technical BrochureArmitage 2 Series Data Sheets
  • Photometric FilesArmitage 2 Series Photometric Files
  • Packaging & DeliveryArmitage 2 Series Packaging & Delivery

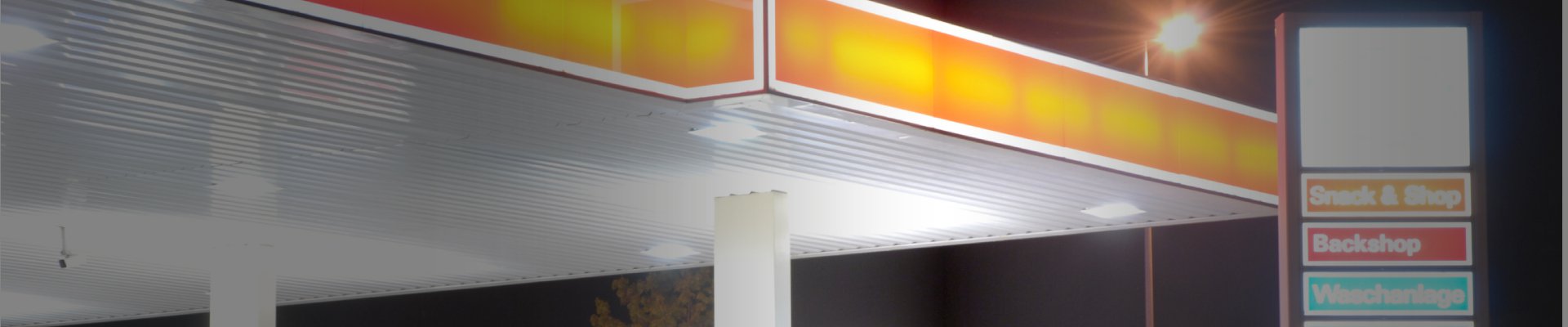

The Armitage Series is perfectly suited for LED canopy lighting in garages, petrol station forecourts and other industrial lighting applications.

Solid build quality, heavy duty thermal management and IP66 ingress protection provide long-lasting zero maintenance durability. Superior Philips Luxeon chips and Mean Well drivers ensure optimal performance.

Kellwood Lighting is committed to help you find the best products for your lighting project. You can enquire about this LED canopy light via the "Request a Quote" link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 3030
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70
Symmetric Light Distribution60°, 90°, 110°
Asymmetric Light DistributionN/A
Lens OpacityClear
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 95% RH
Ambient Storage Tolerance-40° to 80°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD<20%
Physical/Mechanical
Electrical Connection200mm Cable
Cut-out size

50W = 202 x 285mm

100W = 275 x 285mm

150W = 348 x 285mm

200W = 421 x 285mm

Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodised
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsMicrowave Sensor
Options/Accessories
Mounting StylesRecessed Frame
Available Product ColoursSilver, White
Miscellaneous AccessoriesMounting Plates - customised sizes, e.g. 620mm x 620mm
  • 50W, 100W, 150, & 200W Models
  • L70 >60,000 Hours
  • IP66 Ingress Protection Rating
  • 3 Optical Lens Variations
  • Dimmable Options Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeARM2
Nominal Power (Range)50W to 200W
Luminaire Efficacy @ CRI>70 6000K CCT125 to 128 lm/W
Lumen Output @ CRI>70 6000K CCT6,300 to 25,600 lm
Lumen Maintenance (TM21 Reported)L70B50 ≥60,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

60º Optic 60º Optic

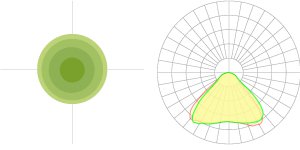

90º Optic 90º Optic

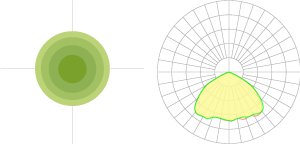

110º Optic 110º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Canopy lights designed for

PURPOSE

Replacing traditional fittings with Kellwood's Armitage Series LED Canopy Lights provides an easy way to improve Lux levels in your facility while reducing energy and maintenance costs, allowing fast recoupment of the initial investment.

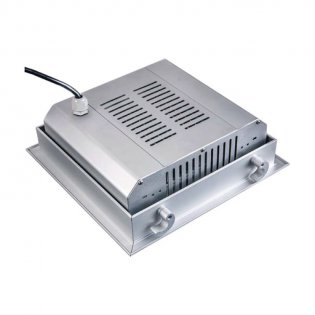

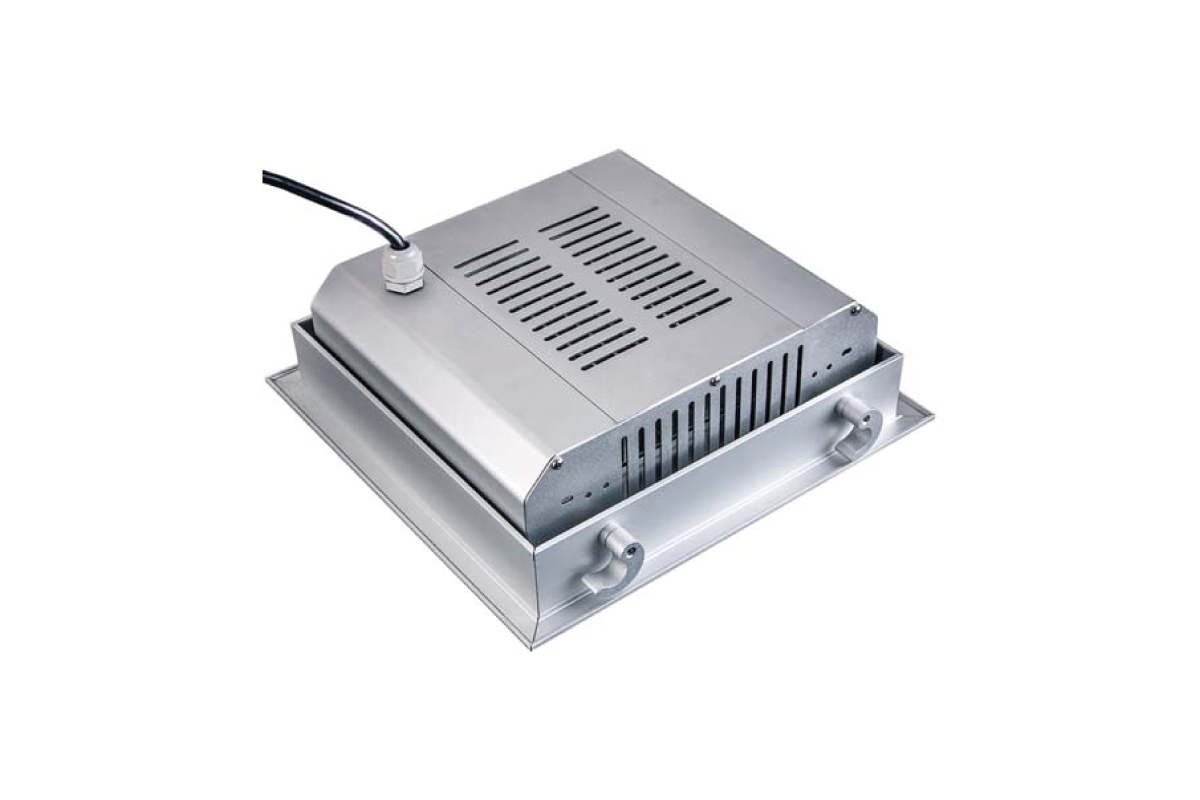

  1. Mounting: The Armitage is designed with a recessed mount frame. The frame holder makes the installation simple with convenient and secure locking clamps.
  2. Optics: There is three light distributions options allowing product flexibility: 60º, 90º, 110º.
  3. Impact Resistance: Through robust design of the Armitage frame construction, Non-corrosive materials and compact body provides it with a rating of IK10.
  4. Controls: A motion sensor can be integrated for stand-alone automation. Dimming controls available.

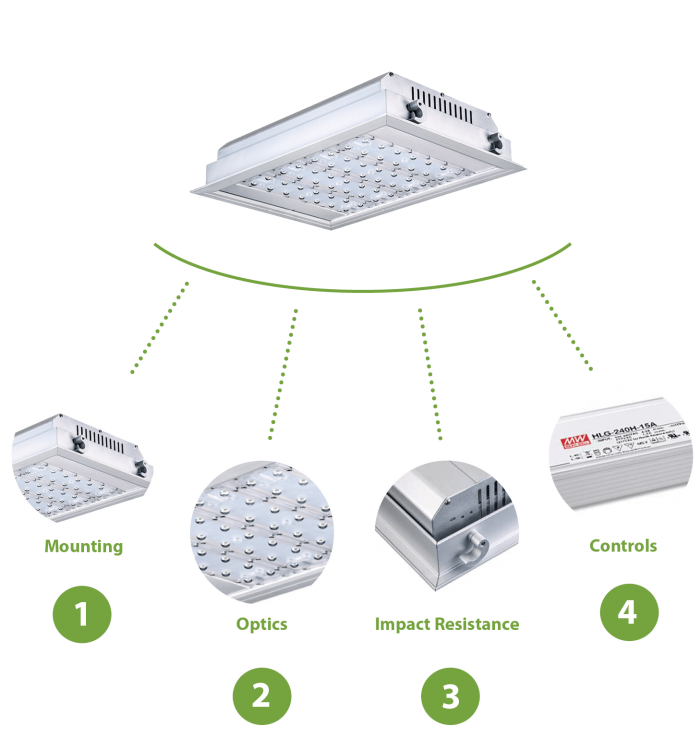

Armitage Multi Purpose LED Canopy Light Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Airports
  • Transport Hubs
  • PETROL STATIon FORECOURTS
