Waverly Compact LED Downlights

Downlight

Waverley
Series

Compact LED Downlights

A premium low glare downlight with patented "secondary optics" to soften shadowing, ideal for the high-end retail sector

Waverly LED Downlight
Ce5yearsTemp 40cDimmableEmergencyLed

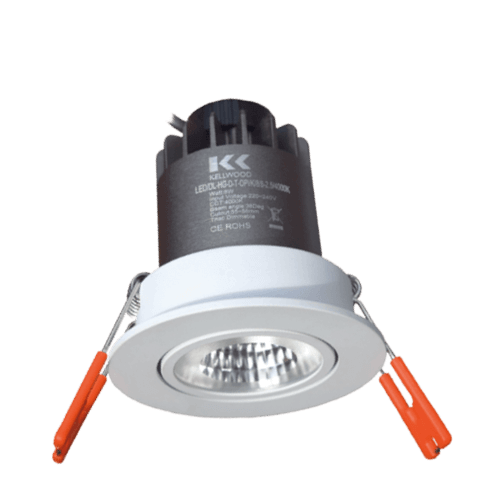

The Waverley Series is a compact, tiltable LED downlight. Available in a range of lumen outputs, beam angles, and "secondary optic" edge-softening diffusers, it is designed for general illumination, or for feature/product lighting.

Enhanced light quality options include CRI>90, and low CCT (e.g. 2700K), making it an ideal product for applications including retail, art galleries, hotel, and residential.

The Waverley Series can be supplied with a range of dimmable drivers (DALI, mains dimming, and 1-10V), providing optional compatibility with most lighting control systems.

Compact 3hr remote-test or DALI-self-test emergency kits (capable of fitting through the cut-out aperture) can convert this into a subtle maintained emergency spotlight.

Kellwood Lighting is here to help you find the best product for your project. You can enquire about this LED spot light via the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeWAV
Nominal Power (Range)5W to 10W
Cut-out Size63-68mm
Dimming OptionsDALI, Mains, 1-10V
Lumen Maintenance (TM21)L80B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

15º Optic 15º Optic

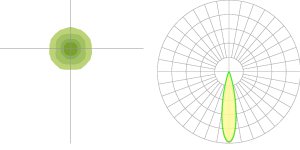

24º Optic 24º Optic
30º Optic 30º Optic
36º Optic 36º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Downlights designed for
PURPOSE

  1. Shadow Softening Optics: The combination of a patented hemispheric optic and an optional edge softening diffuser (using a combination of frosted and clear diffusion) softens shadows and increases light uniformity.
  2. Lumen Maintenance: The Waverley Series LED downlight is assembled with premium components including CREE LED chips and Lifud or Philips Certadrive Drivers. This provides a long product lifetime of L80B50 >50,000 hours.
  3. Rotation: When installed, the inner luminaire has a 25° vertical rotation to provide greater versatility on directing light output.
  4. Emergency: a 3 hour maintained emergency kit (DALI self-test or remote-test), suitable for a narrow 40mm diameter aperture, converts the Waverley Series downlight into a subtle maintained emergency light. LiFePO4 batteries offer extended lifetimes, low parasitic load and operating costs.
  5. High Colour Rendering: available with CRI>90, the Waverley Series downlight is well suited for applications such as general retail and dedicated product display areas.
  6. 5W, 8W, & 10W Models: outputs range from approx. 350 to 800lm providing options to suit most mounting heights and lux levels.
  7. 15° to 36° Beam Angle: a selection of four beam angles offers flexibility for different mounting heights and desired focus - suitable for general lighting, and feature lighting.

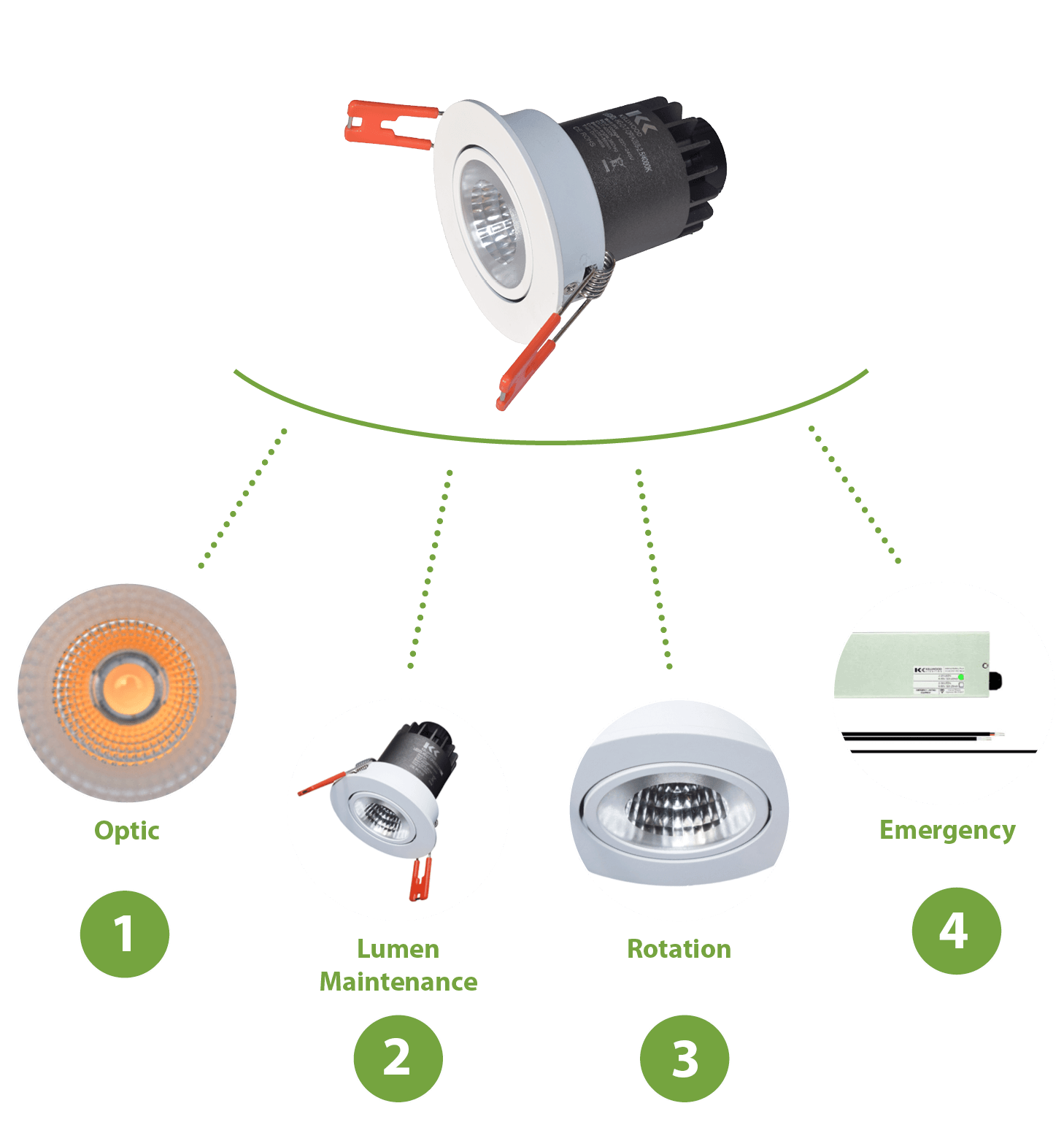

Waverly Premium LED Spot Lights Designed For Purpose Diagram

TYPICAL
APPLICATIONS


  • Shopping Centres and Retail Outlets
  • Leisure Faclities
  • Hotels
  • Showrooms
  • Boardrooms
  • Galleries, Theatres and Museums
Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelCREE
Light EmissionDirect
CCT3000K, 4000K, 6500K
CRI≥80, ≥90
Lens OpacityBi-Frosted, Edge Softening Optic
Environmental
Ingress RatingIP20
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-20° to 40°C
Electrical
Input Voltage200-240VAC
Driver Brand(s)MOSO
Input Frequency (VAC)50-60Hz
Power Factor≥0.50
THD<10%
Physical/Mechanical
Electrical Connection170mm Cable
Fixture Primary MaterialsAluminium Alloy, Steel
Fixture FinishPainted
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesRecessed
Available Product ColoursWhite, Black, Silver
Miscellaneous AccessoriesMaintained Emergency Pack/Kit
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W
HousingExternal pack
Battery TypeNiCd or LiFePO4
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
