Emergency Lights

Emergency

Ellis
Series

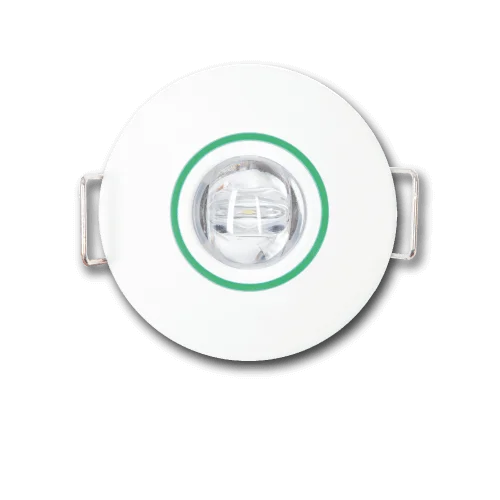

Discrete LED Emergency Spot Light

PROVIDES UP TO 268 LUMENS. THE BODY ALSO FEATURES A PATENTED HALO EFFECT BI-COLOUR LED FOR FAULT IDENTIFICATION

Ellis 2 Series Emergency Light
Ce3yearsIp65EmergencyLedLifepo4
Ellis Emergency Light

ELL2A

Ellis 2B Emergency Spot Light

ELL2B

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureEllis 2A Data Sheets
  • Photometric FilesEllis 2A Photometric Files
  • Packaging & DeliveryEllis 2A Weights & Packaging

Key difference: Higher efficacy with optional self-test & DALI self-test

The Ellis Series is a discrete and compact LED emergency spot light, designed to provide recessed emergency lighting where space is a concern. Only requiring a 43mm cutout and boasting an impressive output of 268 lumens along side area specific optics - the Ellis series can provide recessed emergency lighting across a wide range of sectors.

Our lighting design team is here to help you find the best product for your project. You can enquire about the Ellis emergency spot light via the on-page link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip, Brand & ModelSamsung LH315B
Light EmissionDirect
CCT6500K
Symmetric Light Distribution110° (Open Area, Flood Dispersion)
Asymmetric Light Distribution125x50° (Corridor Optic)
Lens OpacityClear
Environmental
Ingress RatingIP20, IP65
Ambient Usage Tolerance-0° to 80°C
Electrical
Input Voltage4V DC
Maximum Forward Current700mA
Physical/Mechanical
Electrical ConnectionTerminal Block
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesRecessed Mount
Available Product ColoursWhite

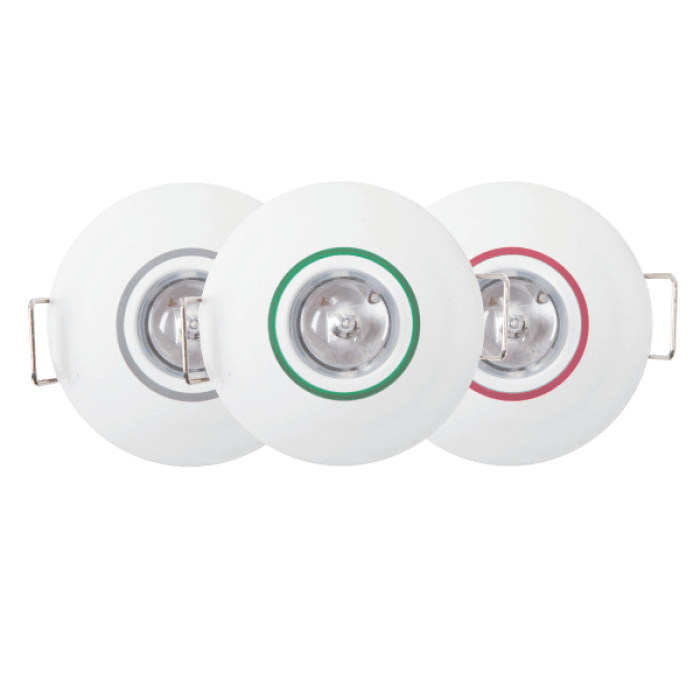

  • Patented Bi-Colour Halo: emergency status (including battery condition, test mode, and mains supply) is displayed via the green or red illuminated halo in the LED head.
  • Ingress Protection: The Ellis Series provides IP65 rating (not including control gear) & the flood dispersion optic provides IP20.
  • Chip: Samsung LH315B chip is used within this product to provide up to 268 lumens.
  • Emergency Testing: Self-test and DALI self-test available
  • Area Specific Optics: Three variable optics which include: Corridor, Open Area & Flood Dispersion.

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureEllis 2B Series Data Sheet
  • Photometric FilesEllis 2B Photometrics
  • Packaging & DeliveryEllis 2B Weights and Packaging

Key difference: Lower drive currents at a lower cost than the Ellis 2A Series

The Ellis Series is a discrete and compact LED emergency spot light, designed to provide recessed emergency lighting where space is a concern. Only requiring a 43mm cutout and boasting an impressive output of 232 lumens along side area specific optics - the Ellis series can provide recessed emergency lighting across a wide range of sectors.

Our lighting design team is here to help you find the best product for your project. You can enquire about the Ellis emergency spot light via the on-page link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip, Brand & ModelSamsung LH315B
Light EmissionDirect
CCT6500K
Symmetric Light Distribution110° (Open Area, Flood Dispersion)
Asymmetric Light Distribution125x50° (Corridor Optic)
Lens OpacityClear
Environmental
Ingress RatingIP20, IP65
Ambient Usage Tolerance-0° to 80°C
Electrical
Input Voltage3.2V DC
Maximum Forward Current550mA
Physical/Mechanical
Electrical ConnectionTerminal Block
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesRecessed Mount
Available Product ColoursWhite
  • Patented Bi-Colour Halo: emergency status (including battery condition, test mode, and mains supply) is displayed via the green or red illuminated halo in the LED head.
  • Ingress Protection: The Ellis Series provides IP65 rating (not including control gear) & the flood dispersion optic provides IP20.
  • Chip: Samsung LH315B chip is used within this product to provide up to 232 lumens.
  • Area Specific Optics: Three variable optics which include: Corridor, Open Area & Flood Dispersion.

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeELL2AELL2B
Duration3 Hours3 Hours
Test-TypeRemote-Test or DALI Self-TestRemote-Test
OperationMaintained or Non-MaintainedMaintained or Non-Maintained
Power2.1W1.6W
BatteryNiCd 4V DC or LiFePO4 (DALI Self-Test)LiFePO4 3.2V DC
OpticsOpen Area, Corridor, or Flood DispersionOpen Area, Corridor, or Flood Dispersion
Warranty3 Years3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

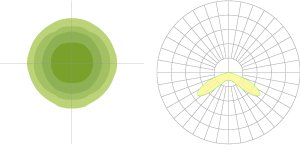

Open Area Optic Open Area Optic

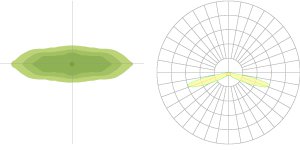

Corridor Optic Corridor Optic

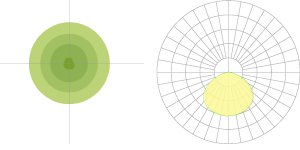

Flood Dispersion Optic Flood Dispersion Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Emergency light designed for

PURPOSE

With DALI and Self Test functionality, routine emergency testing can be efficiently executed and recorded remotely across a large site. As a result, fault finding and general maintenance is less time consuming. This reduces facility management costs while also helping to ensure emergency lighting regulations are adhered to.

Ellis Series Emergency Light

TYPICAL

APPLICATIONS

  • Offices
  • Schools
  • Kitchens
  • Hotels
  • Retail
