IP65 LED Panel with CL2 Laboratory Option

Epoxy-free construction, using aluminium and stainless steel fixingS

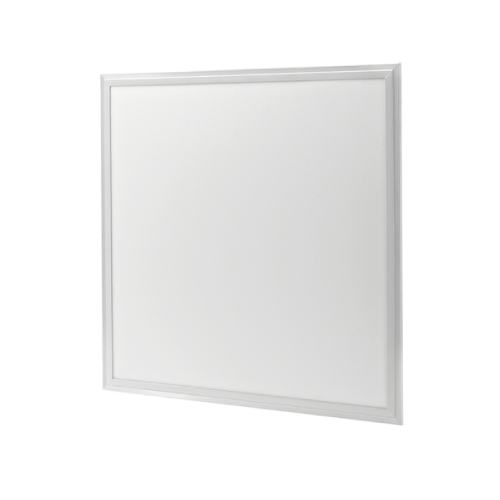

Mitchell LED Panel Light
Ce125lm5yearsIp65Temp 40cDimmableEmergencyLed

The Mitchell Series is a range of IP65-rated LED panels, designed primarily for applications requiring high ingress protection and corrosion resistance.

The expoy-free constructed LED panel connects to an external driver via a water-proof plug. This panel is suitable for a wide selection of applications, including industry and education laboratories, healthcare, and swimming pool ancillary areas. A CL2-compliant laboratory variant with glass diffuser provides further flexibility for specification.

Also available with 3-hour emergency, and DALI drivers, the Mitchell Series can offer a maintained emergency solution, compatible with DALI-dimmable control systems. Note: certain accessories may limit IP rating to front-face only.

With an extensive choice of LED light fittings, our team is here to help you find the best product for your project. You can enquire about this specific product via the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeMIT
Default Ingress ProtectionIP65
Special Protection OptionsCL2 Lab (Glass Diffuser)
Nominal Power (Range)26W, 40W
Size596x596mm (A) 1196x296mm (B)
Options3Hr Emergency, DALI Dimmable
Luminaire Efficacy @ CRI>80 4000K CCT125 to 129 lm/W
Lumen Output @ CRI>80 4000K CCTup to 5,000 lumens
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

114º Optic 114º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Panel lights designed for
PURPOSE

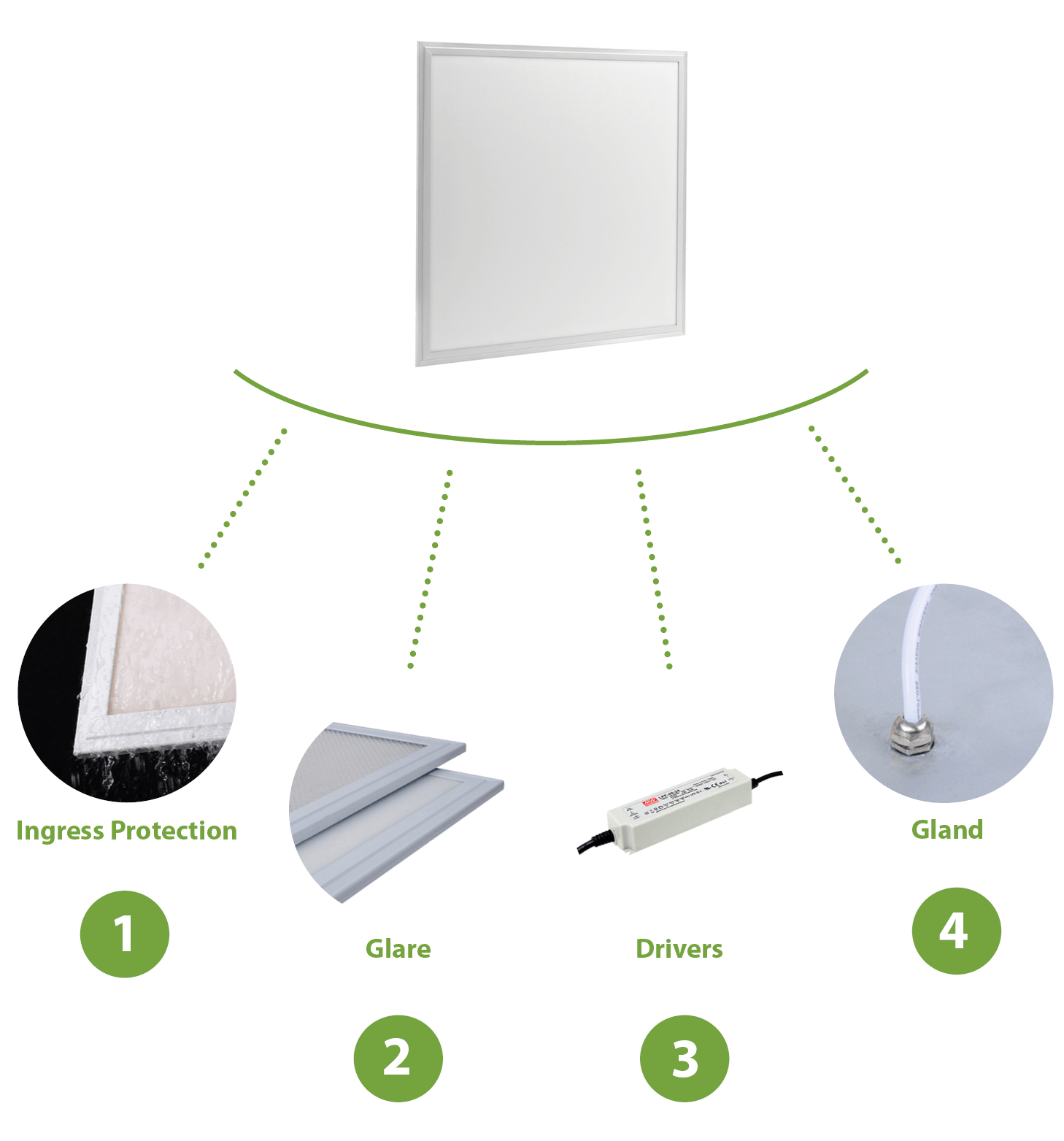

The Mitchell Series LED panel is designed to accommodate the corrosive challenges posed by water ingress. Key design features include:

  1. Ingress Protection: combining a sealed LED panel c/w stainless steel glands & rear fixings, premium electronics and ≥IP65 connector, ensures the full panel is protected from damp environments.

  2. Glare: The standard PMMA diffuser used for the Mitchell Series provides UGR of <19. Further glare reduction is optional with the prismatic diffuser to produce UGR <17.

  3. Drivers: Non-dimming, 1-10V and DALI driver controls are available with this product. IP65 driver and cable control gear offers complete IP65 integrity (only available for non-dimming and 1-10V).

  4. Gland: Stainless steel glands and fixings provide on-going corrosion protection.
  5. Optional Glass Diffuser: CL2 compliance can be achieved for CL2 laboratories.
Mitchell IP65 LED Panel Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Pharmaceutical
  • Healthcare
  • Washdown Areas
  • General Engineering
  • Education
Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSan'an Epistar 2835
Light EmissionDirect
CCT3000K, 4000K, 6000K
CRI>80
Lens OpacityFrosted, Micro-Prismatic
SDCM≤3
UGR<22, <17
Environmental
Ingress RatingIP65 (Front Face)
Impact ResistanceIK06
Ambient Usage Tolerance-30° to 40°C
Ambient Humidity Tolerance15% to 75% RH
Ambient Storage Tolerance-40° to 60°C
Electrical
Input Voltage100-240VAC
Driver Brand(s)Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<15%
Physical/Mechanical
Electrical Connection350mm Cable
Fixture Primary MaterialsStainless Steel, Aluminium
Fixture FinishPainted
Lens(es) MaterialPMMA
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesSuspended Ceiling, Surface Mount Kit
Miscellaneous AccessoriesUGR Diffuser, Maintained Emergency Pack
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.5W
HousingExternal pack or kit (IP20 or IP65 - see data sheet)
Battery TypeNiCd (2.5W)
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

UL

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
