ARRAN SERIES

Linear Impact Resistant Sports Light

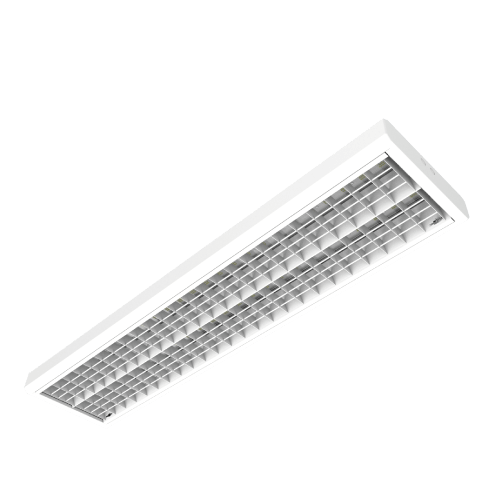

Arran Series Profile Image
Ce120lm5yearsIk10Ip40Ugr 19DimmableEmergency
Arran Series Icon

ARR

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureArran Series Data Sheet
  • Photometric FilesArran Series Photometric Files
  • Packaging & DeliveryArran Series Weights and Packaging

Kellwood Lighting's Arran Series linear sports lighting system has been developed to provide a unique and flexible solution for indoor sports-hall applications.

It forms part of our sports lighting range with DIN 18032-3 certified, IK10 impact resistance to withstand ball-strikes and optional (DALI) dimming to satisfy multi-use facilities.

The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Arran Series Linear Sports Light via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT4000K (3000K, 5000K, 6500K)
CRI>80
Symmetric Light Distribution90°
Lens OpacityClear
Environmental
Impact ResistanceIK10
Ambient Usage Tolerance-20° to 40°C
Ambient Storage Tolerance-40 to 85°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.93
THD<20%
Dimming/Controls
Dimming OptionsDALI
Built-in ControlsEmergency Optional
Options/Accessories
Mounting StylesSurface Mounting, Cable Suspension
Available Product ColoursWhite
Miscellaneous AccessoriesWireless Lighting Controls
  • New Build & Retrofit: a suitable replacement for traditional linear fluorescent or low bay and high bay fittings, with simple installation requirements.
  • IK10 Robust Build - DIN 18032-3 Certified: gives confidence that the fitting will withstand the impact from ball-strikes, reducing repair/maintenance requirements and ensuring H&S Compliance.
  • Low UGR: by design, the recessed light engine and 90° optic provide the reduced glare lighting required for commercial and professional applications. Suitable for both sports and exam halls.
  • Intelligent Controls: optional DALI functionality permits dimming through typical dimmer switches and also compatibility with Wireless Systems.

DIN 18032-3 (Ball Impact)

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeARR
Nominal Power (Range)100W to 200W
Luminaire Efficacy @ CRI>80 4000K121 to 129 lm/W
Lumen Output @ CRI>80 4000K CCT12,900 to 24,200 lm
Lumen Maintenance (TM21 Reported)L80B10 ≥80,000 hours
ConformitiesDIN 18032-3 (Ball Impact)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

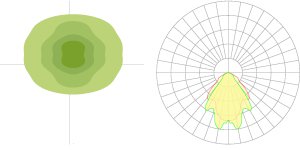

LIGHT DISTRIBUTION OPTIONS

90° Optic 90° Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear sports lights designed for
PURPOSE

  • Glare has been carefully managed by ensuring the LEDs are both diffused and recessed inside the fitting. This helps reduce direct line-of-sight of the light emitting surface, reduce glare and ensure compliance with the maximum UGR levels recommended by an individual sport's governing body.
  • Incorporation of a robust frame and grill to mitigate against impact damage from indoor ball sports, including cricket, tennis, handball, squash, and football. The resulting luminaire is compliant with DIN 18032-3 for ball impact.
  • CRI>80 4000K LED chips and DALI dimmable driver options allow for a multi-purpose use of illuminated space, including as an examination hall.
  • Usability for new-builds and refurbishments is enhanced with surface and suspension mount options, as well as wire-in-wire-out installation.

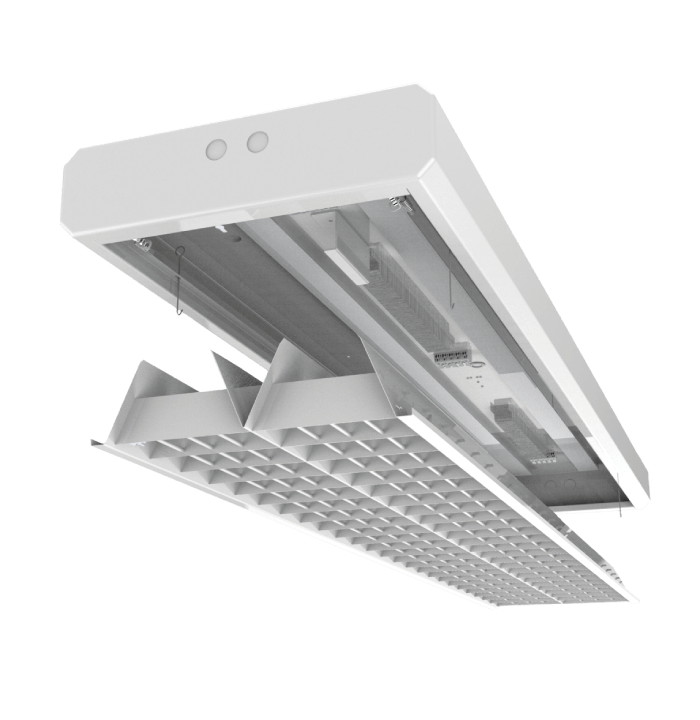

Arran Designed for Purpose image

TYPICAL
APPLICATIONS


  • Sports Hall
  • Badminton
  • Tennis
  • Squash
  • Cricket
  • football
