Kellwood Lighting's high mast sports lighting system has been developed to compete with the best-quality, high-install sports lighting options on the market.

Forming part of our range of Premium LED light fittings with 7no. optic variations and dual-tilt technology permits zone targetting ensuring high specifications can be realised.

The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Ashcroft Series Sports LED Floodlight via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSeoul 5050, 3030, 3737
Light EmissionDirect
CCT5000K (4000K, 5700K optional)
CRI≥70, (≥80, ≥90 optional)
Symmetric Light Distribution12°, 30°, 45°, 60°
Asymmetric Light DistributionF1, F2, F3 Forward Throw
Lens OpacityClear
Environmental
Ingress RatingIP66 (Light Fitting), IP67 (Driver Enclosure)
Impact ResistanceIK08
Ambient Usage Tolerance-30°C to 40°C
Ambient Storage Tolerance15% to 90% RH
Electrical
Input Voltage200-240VAC
Driver Brand(s)uPowerTek, Inventronics
Input Frequency (VAC)100-240VAC
Power Factor>0.9
Physical/Mechanical
Electrical ConnectionCable Connection
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coating
Lens(es) MaterialUV Stabilised Glass and Polycarbonate
Dimming/Controls
Dimming OptionsDALI
Built-in ControlsWireless Lighting Controls and Monitoring
Options/Accessories
Mounting StylesUniversal Bracket
Available Product ColoursBlack
Miscellaneous AccessoriesGlare Shield, Remote Driver Assembly
  • High Powered: the modular design, allows for a step-by-step power increase from 600W to 1200, without compromising on thermal performance.
  • IP67 Secure Remote Driver Enclosure minimises post-top luminaire weight and windage-rating. The compact design, also reduces moment forces on mounting points. This maximises efficiency of columns, masts, and mounting structures.
  • Custom-length Plug-and-play Cabling supports a fast installation time, and simplifies cable size calculations for the M&E designer.
  • Low % ULR: Upward Light Ratio is minimised (even when using increased tilt angles) through a flexible range of medium to narrow-beam optics.
  • Television Broadcast Quality ensures flicker-free video footage can be captured, whether for capturing training sessions, or professional broadcast.

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeASH
Nominal Power (Range)600W to 1200W
Luminaire Efficacy (5050 Chip) @ CRI>70 5000K CCT160lm/W
Lumen Output (5050 Chip) @ CRI>70 5000K CCT96,000lm to 192,000lm
Chip (5050) Lumen Maintenance @ 25°C (TM21 Reported )L80B50 ≥111,000 hours @ 25°C
Primary ConformitiesCE (EMC, LVD, RoHS, ErP), ENEC
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

Light Distribution Options

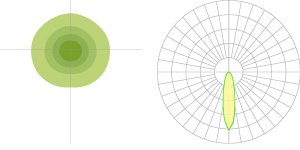

12° Optic 12° Optic

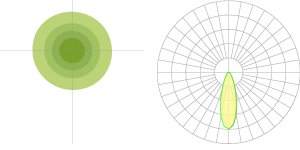

30° Optic 30° Optic

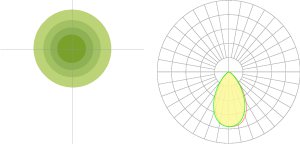

60° Optic 60° Optic

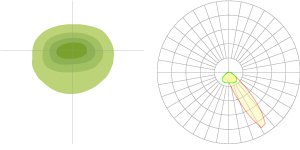

F1 (38° x 100°) Optic F1 (38° x 100°) Optic
F2 (14° x 108°) Optic F2 (14° x 108°) Optic
F3 (27° x 110°) Optic F3 (27° x 110°) Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

LED SPORTS Flood LIGHT designed for

PURPOSE

  1. Medium to High Power Variants: The Ashcroft Series provides medium to high powered sports lighting solutions with a range of wattages from 600W to 1200W. Lumen output can be supplied up to 192,000 lumen, providing a versatile solution to cover Class 1, Class 2 and Class 3 sports lighting applications.
  2. Surge Protection: 10kV (driver) and 20kV (light fitting) surge protection is available; protecting the investment from potential supply voltage surges, and lightning strikes.
  3. Mounting: the clamp handle design on mounting bracket allows for easy adjustments to aim luminaires to the desired locations. The IP67 driver enclosure can be supplied attached to the floodlight, or as a remote enclosure (complete with plug-and-play wiring). The compact design, ensures that moment forces on the bracket mounting points are minimised.
  4. Optics: 7 varied optics are available which include: 4 symmetric optics (12°, 30°, 45° & 60°), 3 asymmetric optic (F1 (38°x100°), F2 (14°x108°), F3 (27°x110°)). Contact Kellwood's design team for advice on optic specification, to discuss photometric files, or to request lighting designs.

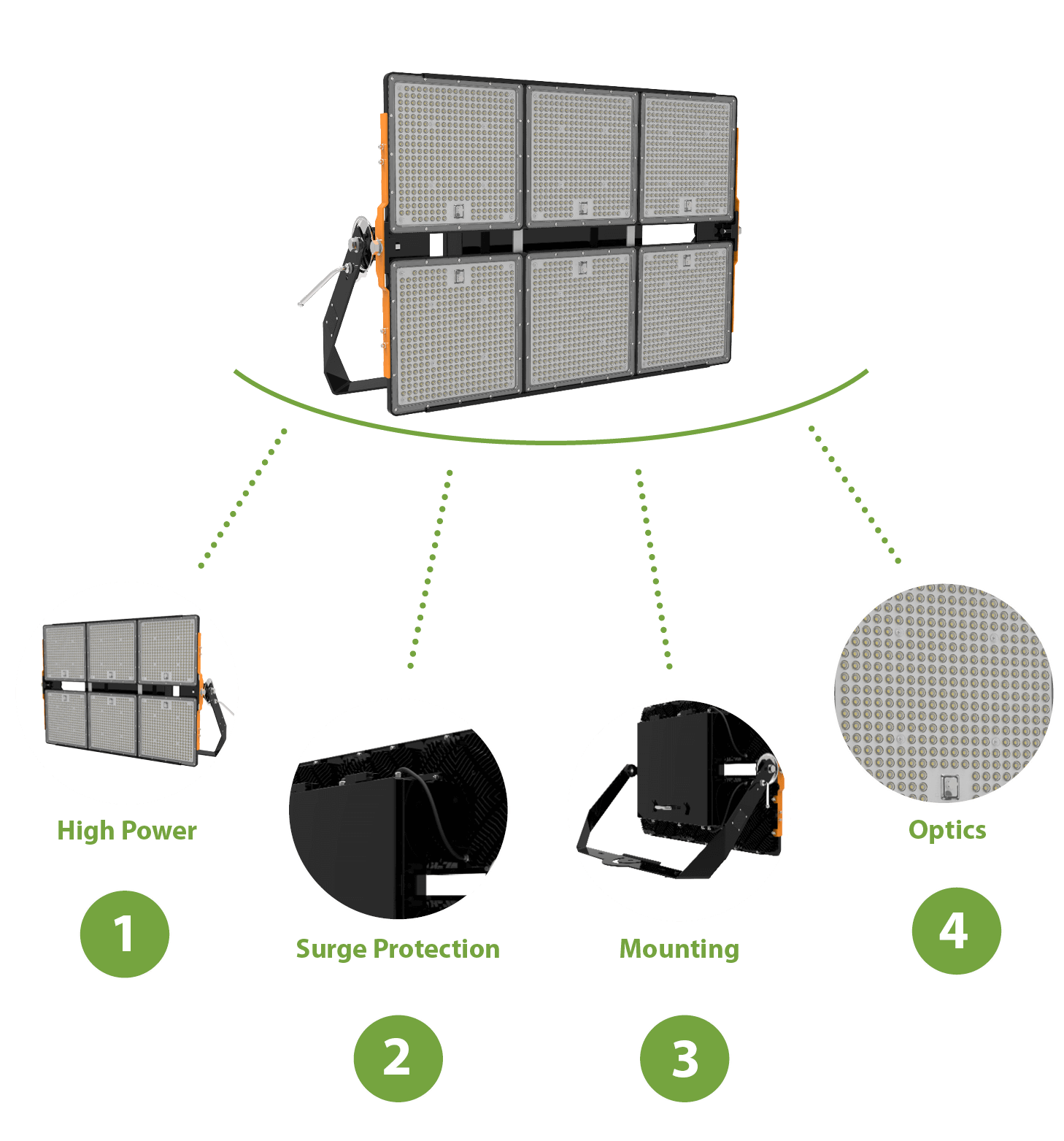

Ashcroft Series Sports LED Floodlight Designed for Purpose Diagram
