Food Grade LED High Bay Lights For Clean Areas

LED HIGH BAY DESIGNED FOR APPLICATION IN FOOD AND BEVERAGE PRODUCTION FACILITIES

Carlyle Food Grade LED High Bay
Ce130lm155lm5yearsIk10Ip66Temp 50cDimmableLed
Carlyle Food Grade LED High Bay

CAR2

Carlyle LED High Bay

CAR3

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureCarlyle Series Data Sheet
  • Photometric FilesCarlyle Series Photometric File
  • Packaging & DeliveryCarlyle Series Packaging and Delivery

Key Difference compared to CAR3: >130lm/W version

A curved design prevents moisture and particle build up, making it particularly useful in wash down areas. Non-glass components avoid risks posed by shattering glass.

Specialist, food-grade, industrial & commercial lighting hardware - Refined for application in hygienic warehouses & factories, laboratories, food preparation, food storage zones, & clean areas.

100W-200W series power range - Impact, ingress, & corrosion, resistant design - Hydrophobic fitting finishes & curved design deliver superior dust & water control - >130lm/W family efficacy - 3no. general purpose & task-specific optic variants - Improved glare control through recessed light engine & optional diffusers - Advanced colour rendering capabilities - Standalone, & wireless network, intelligent control options available.

Here at Kellwood Lighting our lighting design team is here to help you find the best product for your project. You can enquire about this specific product via the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia NF2W757GR
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution50º ,90º ,120º
Lens OpacityClear 120º PC or Tempered Glass, Frosted, Clear
Typical UGR<32 (90º)
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-30ºC to 50ºC
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40ºC to 70ºC
Electrical
Input Voltage100-240VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.94
THD<20%
Physical/Mechanical
Electrical Connection1500mm
Fixture Primary MaterialsADC12 Aluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesEyebolt
Available Product ColoursGrey
Miscellaneous AccessoriesStainless Steel Safety Chain and Carabiner, IP68 13A In-Line Connector
  • Glass-free construction
  • Chassis is hydrophobically treated - Curved surfaces ensure rapid drying process and minimised dust build-up
  • IK10 rated
  • Recessed light source reduces horizontal glare, compared to flush/visible market alternatives
  • IP66 c/w corrosion-resistant powder coating

Farm Assured - NSF/ANSI Standard 2 – Food Equipment

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

DCL

SAA

UL

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureCarlyle 3 Series Data Sheet
  • Photometric FilesCarlyle 3 Series Photometrics
  • Packaging & DeliveryCarlyle 3 Series Packaging and Delivery

Key Difference compared to CAR2: >150lm/W version

A curved design prevents moisture and particle build up, making it particularly useful in wash down areas. Non-glass components avoid risks posed by shattering glass.

Specialist, food-grade, industrial & commercial lighting hardware - Refined for application in hygienic warehouses & factories, laboratories, food preparation, food storage zones, & clean areas.

100W-200W series power range - Impact, ingress, & corrosion, resistant design - Hydrophobic fitting finishes & curved design deliver superior dust & water control - >150lm/W family efficacy - 3no. general purpose & task-specific optic variants - Improved glare control through recessed light engine & optional diffusers - Advanced colour rendering capabilities - Standalone, & wireless network, intelligent control options available.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia NF2W757GR
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution50º ,90º ,120º
Lens OpacityClear 120º PC or Tempered Glass, Frosted, Clear
Typical UGR<32 (90º)
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-30ºC to 50ºC
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40ºC to 70ºC
Electrical
Input Voltage100-240VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.94
THD<20%
Physical/Mechanical
Electrical Connection1500mm
Fixture Primary MaterialsADC12 Aluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesEyebolt
Available Product ColoursGrey
Miscellaneous AccessoriesStainless Steel Safety Chain and Carabiner, IP68 13A In-Line Connector
  • Glass-free construction
  • Chassis is hydrophobically treated - Curved surfaces ensure rapid drying process and minimised dust build-up
  • IK10 rated
  • Recessed light source reduces horizontal glare, compared to flush/visible market alternatives
  • IP66 c/w corrosion-resistant powder coating

Farm Assured - NSF/ANSI Standard 2 – Food Equipment

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

DCL

SAA

UL

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeCAR2CAR3
Nominal Power (Range)100W to 200W100W to 200W
Luminaire Efficacy @ CRI>70 5000K CCT130 to 133 lm/W155 to 159 lm/W
Lumen Output @ CRI>70 5000K CCT13,000 to 26,400 lm15,500 to 31,000 lm
Lumen Maintenance (TM21 Reported)L70B50 ≥50,000 hoursL80B10 ≥67,000 hours @ 25°C Ta
Primary ConformitiesFarm Assured, CE (EMC, LVD, RoHS, ErP)Farm Assured, CE (EMC, LVD, RoHS, ErP)
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

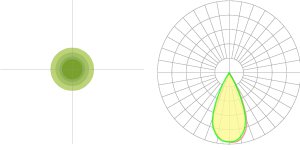

50º Optic 50º Optic

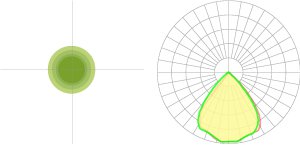

90º Optic 90º Optic

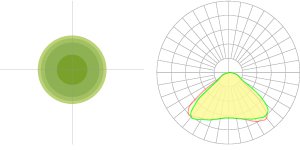

120º Optic 120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

High Bay lights designed for
PURPOSE

With a wide operating range of -40°C to 50°C the Carlyle Series naturally lends itself to the Food and Beverage industry.

Whilst industrial linear fittings such as our Drummond and Crawford series are all suitable in food environments, the Carlyle series delivers Ingress protection and a tough powder coating to provide peace of mind for product longevity. High CRI models are available and well suited for areas such as picking, sorting and quality control where decisions have to be made based on appearance.

  1. NSF/ANSI Compliance - The Carlyle Series complies with NSF/ANSI requirements which makes it suitable within the food handling and processing environments such as bakery, cafeteria, kitchen and pantry units.

  2. Optics - The Carlyle Series offers a range of optics including 50º, 90º, 120º. Additionally there is options for frosted diffuser, tempered glass and clear polycarbonate lens. The chassis is designed to have recessed light source to reduce horizontal glare.

  3. Chassis design - Chassis is glass free and hydrophobically treated. Curved surfaces and hidden screws ensure rapid drying process and minimised dust build-up.

  4. Ingress Protection - It is rated IP69K which will allow the light to withstand high temperature and pressure spray downs.

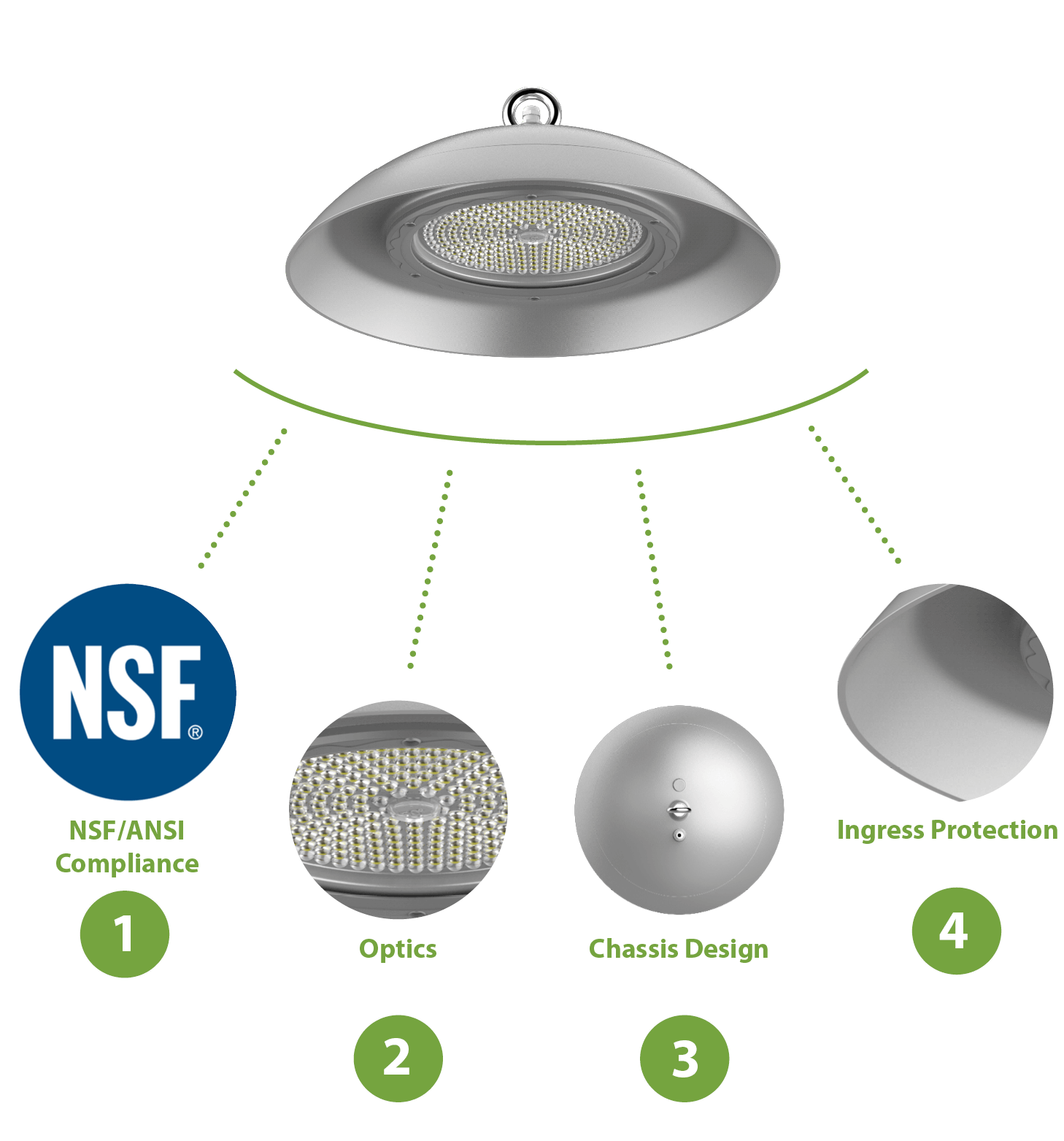

Carlyle Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Food Production
  • Food processing
  • Kitchens
  • Bakeries
  • Breweries
