Bowden IP44 Lights

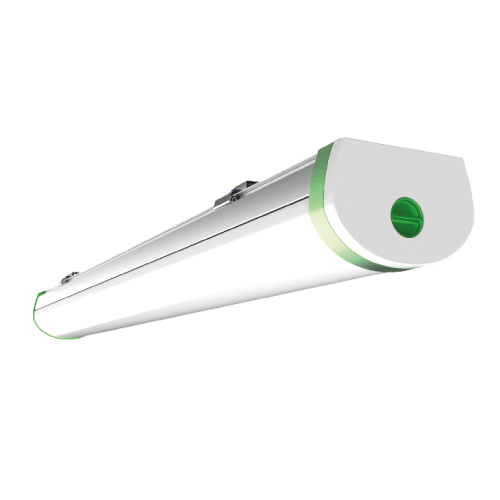

Frosted High Output Linear LED Light

Bowden
Series

LED Batten Lights with Frosted Low-glare Diffusers for Industrial Manufacturing Facilities

High-output frosted linear lights for large-scale projects and production facilities

Bowden Industrial Lighting
Ce130lm5yearsIk08Temp 40cDimmableLed

Kellwood's Bowden Series of frosted high output linear LED lights are designed primarily for illuminating large manufacturing facilities where high lux levels and relatively low mounting heights are commonplace.

The wide frosted diffuser provides a large light-emitting surface area, minimising the contrast with background illumination and reducing glare compared to more compact alternatives.

Available in outputs of >13,000 lumens (100W), DALI, and 3hr maintained emergency, this fitting is designed to be a cost-effective alternative to traditional high-output linear florescent fittings.

You can enquire about the Bowden Series LED batten light fitting using the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816: The team at Kellwood Lighting is here to help you find the most suitable product for your project and budget.

Performance Summary
Series CodeBO3
Nominal Power (Range)80W to 100W
Nominal Sizes4ft (1200mm), 5ft (1500mm)
Key OptionsDALI, 3hr Emergency
Luminaire Efficacy @ CRI>70 5000K CCT130 lm/W
Lumen Output @ CRI>70 5000K CCT10,400 to 13,000 lumens
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

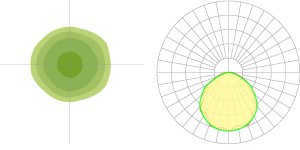

LIGHT DISTRIBUTION OPTIONS

120º Optic 120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear lights designed for
Purpose

The Bowden Series industrial linear LED luminaire delivers a high lux, low glare environment using a "conventionally styled" housing. Design features and considerations include:

  1. Large "oversized" frosted diffuser provides a large, low-glare light emitting surface.
  2. A high output solution for 1ow-to-medium mounting heights.
  3. Integrated 3hr emergency simplifies product variation, and the need for stand-alone non-maintained emergency "frog-eyes" and bulkheads.
  4. Optional DALI drivers provide easy integration with DALI compatible lighting controls - DALI dimming make the potential energy savings even greater and create the possibility of pre-defined task specific lighting.
High Output Frosted Linear LED Light

TYPICAL
APPLICATIONS


  • Industrial
  • Production
  • Workshop
  • Warehousing
  • Factories

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSamsung 2835
Light EmissionDirect
CCT3000K, 4000K, 5000K, 6000K
CRI>80, >90
Lens OpacityFrosted, Clear Striped
Environmental
Ingress RatingIP44/IP20
Impact ResistanceIK08
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance10% to 80% RH
Ambient Storage Tolerance-40° to 85°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.93
THD<20%
Physical/Mechanical
Electrical Connection1500mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodies
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesTwin Surface/Trunking Brackets, Cable Suspension, Twin Adjustable Angle Brackets
Miscellaneous Accessories3m Linking Cable

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
